Filter reg. iz nerja. jekla1.4401G 1/21.7 - 17.5 bar
SKU: 133544RIE
EAN: 4047322479547

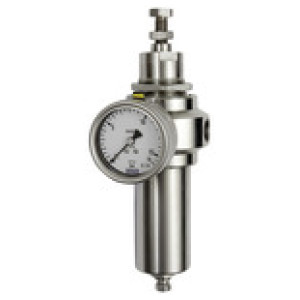

Stainless steel filter regulator, 1.4401, with secondary venting (reversible), Size 3, G 1/2, Control range 1.7 - 17.5 bar
Stainless steel filter regulators with self-relieving (not for liquid media) for use in the chemical industry, mining, plant construction and special machinery industries, pneumatics, etc.
Pressure setting by hexagon head screw.
Obrestno financiranje
- 21,04 € x 48 mesecev
- 26,88 € x 36 mesecev
- 38,62 € x 24 mesecev
- 73,92 € x 12 mesecev
- 144,60 € x 6 mesecev
- 286,00 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Min. krmilno območje [bar] | Velikost | Max. krmilno območje [bar] | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133545RIE | G 3/4 | 0.4 | 3 | 4 | 82.0 | 123.0 | 275.0 | 9630 | Čas dobave 3 - 5 dni | 790,35 € |  | |
| 133544RIE | G 1/2 | 1.7 | 3 | 17.5 | 82.0 | 123.0 | 275.0 | 5440 | Čas dobave 3 - 5 dni | 790,35 € | | |
| 133540RIE | G 1/4 | 1.7 | 1 | 17.5 | 64.0 | 117.0 | 271.0 | 2495 | Čas dobave 3 - 5 dni | 648,06 € | | |
| 133546RIE | G 3/4 | 1.7 | 3 | 17.5 | 82.0 | 123.0 | 275.0 | 9630 | Čas dobave 3 - 5 dni | 790,35 € | | |
| 133547RIE | G 1 | 0.4 | 4 | 4 | 120.0 | 136.0 | 346.0 | 10000 | Čas dobave 3 - 5 dni | 2.868,65 € | | |
| 133542RIE | G 3/8 | 1.7 | 1 | 17.5 | 64.0 | 117.0 | 271.0 | 3200 | Čas dobave 3 - 5 dni | 648,06 € | | |
| 133541RIE | G 3/8 | 0.4 | 1 | 4 | 64.0 | 117.0 | 271.0 | 3200 | Čas dobave 3 - 5 dni | 648,06 € | | |
| 133539RIE | G 1/4 | 0.4 | 1 | 4 | 64.0 | 117.0 | 271.0 | 2495 | Čas dobave 3 - 5 dni | 648,06 € | | |
| 133543RIE | G 1/2 | 0.4 | 3 | 4 | 82.0 | 123.0 | 275.0 | 5440 | Čas dobave 3 - 5 dni | 790,35 € | | |
| 133548RIE | G 1 | 1.7 | 4 | 17.5 | 120.0 | 136.0 | 346.0 | 10000 | Čas dobave 3 - 5 dni | 2.868,65 € | |
Opis
Stainless steel filter regulator, 1.4401, with secondary venting (reversible), Size 3, G 1/2, Control range 1.7 - 17.5 bar
Stainless steel filter regulators with self-relieving (not for liquid media) for use in the chemical industry, mining, plant construction and special machinery industries, pneumatics, etc.
Pressure setting by hexagon head screw.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 30 |
| Velikost | 3 |
| Ohišje | Stainless steel 1.4401 (AISI 316) |
| Tesnilo | NBR |
| Membrane | NBR/PTFE |
| Rang filtra [µm] | 25 |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 60 |
| Odtok kondenzata | Manual drain valve |
| Pretok [l/min] | 5440 |
| Min. krmilno območje [bar] | 1.7 |
| Max. krmilno območje [bar] | 17.5 |

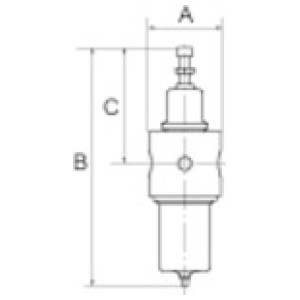

| A [mm] | 82.0 |
| B [mm] | 275.0 |
| C [mm] | 123.0 |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar |
