Filter reg. »multifix«5 µmVel. 3G 1/2, 0.5 - 10 bar
SKU: 100495RIE
EAN: 4047322124355

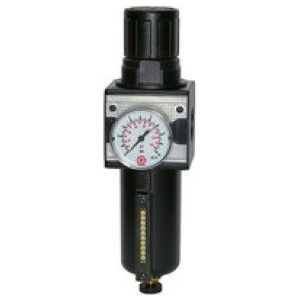

Filter regulator »multifix« with metal container, Viewing tube and press. gauge, 5 µm, Size 3, G 1/2, Input pressure max. 20 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator.
The pressure setting can be locked by pushing the button down.
Obrestno financiranje
- 13,85 € x 12 mesecev
- 27,09 € x 6 mesecev
- 53,58 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Ohišje | Velikost | Rang filtra [µm] | DN | A [mm] | C [mm] | D [mm] | B [mm] | Pretok [l/min] | Max. notranja poraba zraka | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100496RIE | G 3/4 | Die-cast zinc | 3 | 5 | 20 | 68.8 | 99.0 | 149.2 | 248.2 | 6700 | Čas dobave 3 - 5 dni | 146,24 € |  | ||
| 100493RIE | G 1/4 | Die-cast zinc | 1 | 5 | 6 | 47.8 | 67.0 | 125.5 | 192.5 | 1600 | Čas dobave 3 - 5 dni | 110,98 € | | ||
| 100497RIE | G 1 | Aluminium | 5 | 40 | 25 | 100.0 | 128.0 | 255.7 | 383.7 | 15000 | 0,5 l/min (depending on secondary pressure) | Čas dobave 3 - 5 dni | 402,76 € | | |
| 100494RIE | G 3/8 | Die-cast zinc | 1 | 5 | 10 | 47.8 | 67.0 | 125.5 | 192.5 | 1600 | Čas dobave 3 - 5 dni | 110,98 € | | ||
| 133109RIE | G 3/4 | Die-cast aluminium | 4 | 5 | 20 | 85.0 | 125.0 | 189.0 | 314.0 | 12000 | 1,5 l/min (depending on secondary pressure) | Čas dobave 3 - 5 dni | 344,37 € | | |
| 100495RIE | G 1/2 | Die-cast zinc | 3 | 5 | 15 | 68.8 | 99.0 | 149.2 | 248.2 | 6700 | Čas dobave 3 - 5 dni | 147,58 € | | ||
| 133110RIE | G 1 | Die-cast aluminium | 4 | 5 | 25 | 85.0 | 125.0 | 189.0 | 314.0 | 12000 | 1,5 l/min (depending on secondary pressure) | Čas dobave 3 - 5 dni | 344,37 € | |
Opis
Filter regulator »multifix« with metal container, Viewing tube and press. gauge, 5 µm, Size 3, G 1/2, Input pressure max. 20 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator.
The pressure setting can be locked by pushing the button down.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 20 |
| Velikost | 3 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Tesnilo | NBR |
| Vzmet pokrova motorja | POM-brass |
| Odtok kondenzata | Semi-automatic |
| Pretok [l/min] | 6700 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| DN | 15 |
| Ohišje | Die-cast zinc |
| Rang filtra [µm] | 5 |
| Posoda | Metal container with viewing tube |

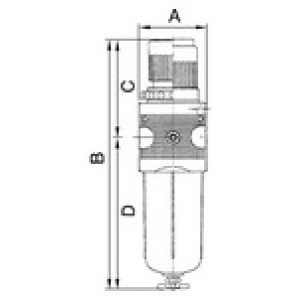

| A [mm] | 68.8 |
| B [mm] | 248.2 |
| C [mm] | 99.0 |
| D [mm] | 149.2 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar |
