* slike so simbolične
Filter reg. »multifix«5 µmVel.4,G 3/40.5 - 10 bar
SKU: 133107RIE
EAN: 4047322475952

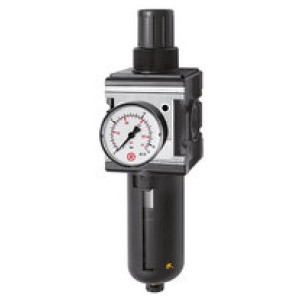

Filter regulator »multifix« with PC container, Protective cage and press. gauge, 5 µm, Size 4, G 3/4, Input pressure max. 16 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator.
The pressure setting can be locked by pushing the button down.
Opis
Filter regulator »multifix« with PC container, Protective cage and press. gauge, 5 µm, Size 4, G 3/4, Input pressure max. 16 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator.
The pressure setting can be locked by pushing the button down.
Tehnični podatki in specifikacije
Navoj | G 3/4 |
Max. vhodni tlak [bar] | 16 |
Velikost | 4 |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Tesnilo | NBR |
Vzmet pokrova motorja | POM-brass |
Poraba zraka | Yes |
Max. notranja poraba zraka | 1,5 l/min (depending on secondary pressure) |
Odtok kondenzata | Semi-automatic |
Pretok [l/min] | 12000 |
Min. krmilno območje [bar] | 0.5 |
Max. krmilno območje [bar] | 10 |
Zaslon manometra max. [bar] | 16 |
DN | 20 |
Ohišje | Die-cast aluminium |
Rang filtra [µm] | 5 |
Posoda | Polycarbonate container with protective cage |

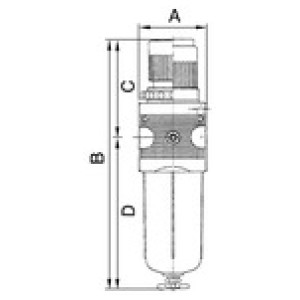

A [mm] | 85.0 |
B [mm] | 315.0 |
C [mm] | 125.0 |
D [mm] | 190.0 |
Serija | multifix |
Merjenje pretoka | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar |
