Filter reg. »Stinard«Kov. pos.5 µmVel.1,G 1/4
SKU: 100934RIE
EAN: 4047322102247

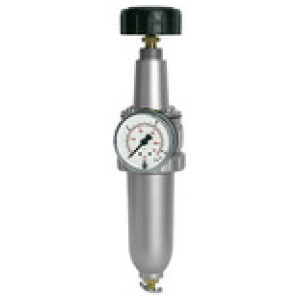

Filter regulator »Standard«, Metal container and pressure gauge, 5 µm, Size 1, G 1/4, Input pressure max. 25 bar, 0.5 - 16 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with selfrelieving design,
combined with a centrifugal separator.
Čas dobave: Predvidoma 3 - 5 dni
81,52 €
ali od 15,01 € / mesec
Izračunaj obrok
Obrestno financiranje
- 15,01 € x 6 mesecev
- 29,69 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Ohišje | Velikost | DN | Rang filtra [µm] | A [mm] | F [mm] | C [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100939RIE | G 1 | Aluminium, painted silver | 4 | 25 | 40 | 125.0 | 145.0 | 190.6 | 264.0 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 100937RIE | G 1/2 | Die-cast zinc, painted silver | 3 | 14 | 5 | 82.0 | 83.0 | 130.0 | 172.0 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | 142,83 € | | |
| 100936RIE | G 3/8 | Die-cast zinc, painted silver | 2 | 11 | 40 | 70.0 | 76.5 | 120.5 | 161.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 142,83 € | | |
| 174096RIE | G 3/4 | Aluminium, painted silver | 4 | 25 | 40 | 125.0 | 129.0 | 265.6 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 369,78 € | | ||
| 100935RIE | G 3/8 | Die-cast zinc, painted silver | 1 | 8 | 5 | 54.0 | 62.0 | 106.5 | 133.5 | 900 | Čas dobave: Predvidoma 3 - 5 dni | 81,52 € | | |
| 174097RIE | G 1 | Aluminium, painted silver | 4 | 25 | 40 | 125.0 | 129.0 | 265.6 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 369,78 € | | ||
| 100938RIE | G 3/4 | Aluminium, painted silver | 4 | 25 | 40 | 125.0 | 145.0 | 190.6 | 264.0 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 100934RIE | G 1/4 | Die-cast zinc, painted silver | 1 | 8 | 5 | 54.0 | 62.0 | 106.5 | 133.5 | 900 | Čas dobave: Predvidoma 3 - 5 dni | 81,52 € | |
Opis
Filter regulator »Standard«, Metal container and pressure gauge, 5 µm, Size 1, G 1/4, Input pressure max. 25 bar, 0.5 - 16 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with selfrelieving design,
combined with a centrifugal separator.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 25 |
| Velikost | 1 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Tesnilo | NBR |
| Pretok [l/min] | 900 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 16 |
| Zaslon manometra max. [bar] | 25 |
| Odtok kondenzata | Manuel |
| DN | 8 |
| Ohišje | Die-cast zinc, painted silver |
| Rang filtra [µm] | 5 |
| Posoda | Metal container |

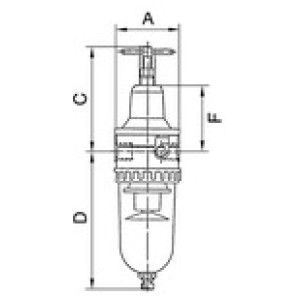

| A [mm] | 54.0 |
| C [mm] | 106.5 |
| D [mm] | 133.5 |
| F [mm] | 62.0 |
| Serija | Standard |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
