Filter reg. »Stinard«PC zbir.40 µmVel.2,G 3/8
SKU: 100924RIE
EAN: 4047322338011

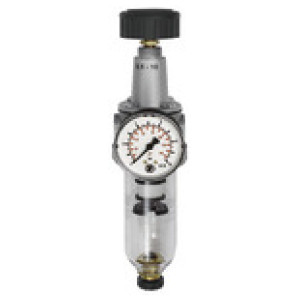

Filter regulator »Standard« PC container, press. gauge, 40 µm, Size 2, G 3/8, Input pressure max. 16 bar, Control range 0.5-10 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with selfrelieving design,
combined with a centrifugal separator.
Čas dobave 3 - 5 dni
129,61 €
ali od 12,16 € / mesec
Izračunaj obrok
Obrestno financiranje
- 12,16 € x 12 mesecev
- 23,80 € x 6 mesecev
- 47,06 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Ohišje | Velikost | DN | Rang filtra [µm] | A [mm] | F [mm] | C [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100924RIE | G 3/8 | Die-cast zinc, painted silver | 2 | 11 | 40 | 70.0 | 76.5 | 120.5 | 145.9 | 1500 | Čas dobave 3 - 5 dni | 129,61 € |  | |
| 100922RIE | G 1/4 | Die-cast zinc, painted silver | 1 | 8 | 5 | 54.0 | 62.0 | 106.5 | 129.7 | 900 | Čas dobave 3 - 5 dni | 73,33 € | | |
| 174092RIE | G 3/4 | Aluminium, painted silver | 4 | 25 | 40 | 125.0 | 129.0 | 263.0 | 12000 | Čas dobave 3 - 5 dni | 357,69 € | | ||
| 174093RIE | G 1 | Aluminium, painted silver | 4 | 25 | 40 | 125.0 | 129.0 | 263.0 | 12000 | Čas dobave 3 - 5 dni | 357,69 € | | ||
| 100925RIE | G 1/2 | Die-cast zinc, painted silver | 3 | 14 | 5 | 82.0 | 83.0 | 130.0 | 169.4 | 3000 | Čas dobave 3 - 5 dni | 129,61 € | | |
| 100926RIE | G 3/4 | Aluminium, painted silver | 4 | 25 | 40 | 125.0 | 145.0 | 190.6 | 261.4 | 7000 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 100927RIE | G 1 | Aluminium, painted silver | 4 | 25 | 40 | 125.0 | 145.0 | 190.6 | 261.4 | 7000 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 100923RIE | G 3/8 | Die-cast zinc, painted silver | 1 | 8 | 5 | 54.0 | 62.0 | 106.5 | 129.7 | 900 | Čas dobave 3 - 5 dni | 74,74 € | |
Opis
Filter regulator »Standard« PC container, press. gauge, 40 µm, Size 2, G 3/8, Input pressure max. 16 bar, Control range 0.5-10 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with selfrelieving design,
combined with a centrifugal separator.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Tesnilo | NBR |
| Pretok [l/min] | 1500 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Odtok kondenzata | Semi-automatic |
| DN | 11 |
| Ohišje | Die-cast zinc, painted silver |
| Rang filtra [µm] | 40 |
| Posoda | Polycarbonate container |

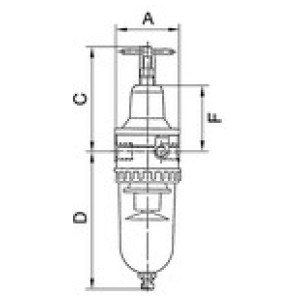

| A [mm] | 70.0 |
| C [mm] | 120.5 |
| D [mm] | 145.9 |
| F [mm] | 76.5 |
| Serija | Standard |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
