Filter reg. »Stinard«Zašč. kletka5 µmVel.1,G 3/8
SKU: 100929RIE
EAN: 4047322102308

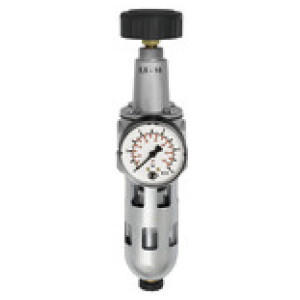

Filter regulator »Standard«, PC container, Protective cage, 5 µm, Size 1, G 3/8, Input pressure max. 16 bar, 0.5 - 10 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with selfrelieving design,
combined with a centrifugal separator.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Filter reg. »Stinard«Zašč. kletka5 µmVel.1,G 3/8
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 3/8
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc, painted silver
Posoda: Polycarbonate container with protective cage
Serija: Standard
C [mm]: 106.5
D [mm]: 129.7
Navoj: G 3/8
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc, painted silver
Posoda: Polycarbonate container with protective cage
Serija: Standard
C [mm]: 106.5
D [mm]: 129.7
| Šifra | Navoj | Ohišje | Velikost | Rang filtra [µm] | DN | A [mm] | F [mm] | C [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100929RIE | G 3/8 | Die-cast zinc, painted silver | 1 | 5 | 8 | 54.0 | 62.0 | 106.5 | 129.7 | 900 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100932RIE | G 3/4 | Aluminium, painted silver | 4 | 40 | 25 | 125.0 | 145.0 | 190.6 | 261.4 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 174094RIE | G 3/4 | Aluminium, painted silver | 4 | 40 | 25 | 125.0 | 129.0 | 263.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | | |
| 100930RIE | G 3/8 | Die-cast zinc, painted silver | 2 | 40 | 11 | 70.0 | 76.5 | 120.5 | 145.9 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100931RIE | G 1/2 | Die-cast zinc, painted silver | 3 | 5 | 14 | 82.0 | 83.0 | 130.0 | 169.4 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100928RIE | G 1/4 | Die-cast zinc, painted silver | 1 | 5 | 8 | 54.0 | 62.0 | 106.5 | 129.7 | 900 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100933RIE | G 1 | Aluminium, painted silver | 4 | 40 | 25 | 125.0 | 145.0 | 190.6 | 261.4 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 174095RIE | G 1 | Aluminium, painted silver | 4 | 40 | 25 | 125.0 | 129.0 | 263.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Filter regulator »Standard«, PC container, Protective cage, 5 µm, Size 1, G 3/8, Input pressure max. 16 bar, 0.5 - 10 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with selfrelieving design,
combined with a centrifugal separator.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Tesnilo | NBR |
| Pretok [l/min] | 900 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Odtok kondenzata | Semi-automatic |
| DN | 8 |
| Ohišje | Die-cast zinc, painted silver |
| Rang filtra [µm] | 5 |
| Posoda | Polycarbonate container with protective cage |

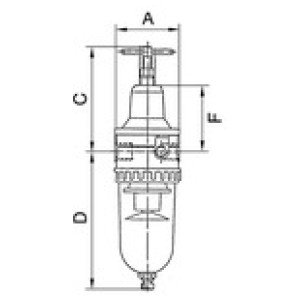

| A [mm] | 54.0 |
| C [mm] | 106.5 |
| D [mm] | 129.7 |
| F [mm] | 62.0 |
| Serija | Standard |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
