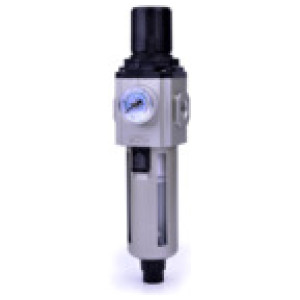

Filter regulator »GA«, PC zbiralnik, 5 µm, Velikost 400, G 3/8
SKU: 178478RIE
EAN: 4047322666756
Filter regulator »GA«, with PC container, Protective cage, Mounting bracket, 5 µm, Size 400, G 3/8, Input pressure max. 10 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator. The pressure setting can be locked by pushing the button down.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Filter regulator »GA«, PC zbiralnik, 5 µm, Velikost 400, G 3/8
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 3/8
Odtok kondenzata: Fully-automatic
Ohišje: Die-cast aluminium
Posoda: Polycarbonate container with protective cage
C [mm]: 108.0
D [mm]: 177.5
B [mm]: 285.5
Navoj: G 3/8
Odtok kondenzata: Fully-automatic
Ohišje: Die-cast aluminium
Posoda: Polycarbonate container with protective cage
C [mm]: 108.0
D [mm]: 177.5
B [mm]: 285.5
| Šifra | Navoj | Odtok kondenzata | A [mm] | C [mm] | D [mm] | B [mm] | Velikost | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 178477RIE | G 1/2 | Fully-automatic | 62.5 | 89.0 | 158.0 | 247.0 | 300 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 178474RIE | G 1/2 | Semi-automatic | 80.0 | 108.0 | 177.5 | 285.5 | 400 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 178472RIE | G 1/2 | Semi-automatic | 62.5 | 89.0 | 158.0 | 247.0 | 300 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 178470RIE | G 1/4 | Semi-automatic | 62.5 | 89.0 | 158.0 | 247.0 | 300 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 178478RIE | G 3/8 | Fully-automatic | 80.0 | 108.0 | 177.5 | 285.5 | 400 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 178471RIE | G 3/8 | Semi-automatic | 62.5 | 89.0 | 158.0 | 247.0 | 300 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 178476RIE | G 3/8 | Fully-automatic | 62.5 | 89.0 | 158.0 | 247.0 | 300 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 178473RIE | G 3/8 | Semi-automatic | 80.0 | 108.0 | 177.5 | 285.5 | 400 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 178475RIE | G 1/4 | Fully-automatic | 62.5 | 89.0 | 158.0 | 247.0 | 300 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 178479RIE | G 1/2 | Fully-automatic | 80.0 | 108.0 | 177.5 | 285.5 | 400 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Filter regulator »GA«, with PC container, Protective cage, Mounting bracket, 5 µm, Size 400, G 3/8, Input pressure max. 10 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator. The pressure setting can be locked by pushing the button down.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Min. temperaturno območje [°C] | -5 |
| Max. temperaturno območje [°C] | 70 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 400 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Rang filtra [µm] | 5 |
| Vzmet pokrova motorja | POM |
| Min. krmilno območje [bar] | 1.5 |
| Max. krmilno območje [bar] | 9 |
| Posoda | Polycarbonate container with protective cage |
| Pretok [l/min] | 4000 |
| Odtok kondenzata | Fully-automatic |

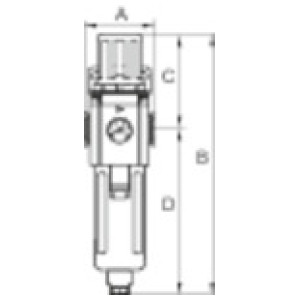

| A [mm] | 80.0 |
| B [mm] | 285.5 |
| C [mm] | 108.0 |
| D [mm] | 177.5 |
| Serija | GA |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
