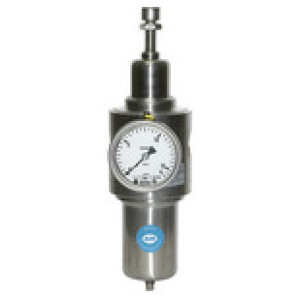

Filter regulator iz nerjevečega jekla, 1.4404, G 1/2, 1 - 15 bar
SKU: 101208RIE
EAN: 4047322101936
Stainless steel filter regulator, 1.4404, with secondary venting (reversible), incl. press. gauge, G 1/2, Control range 1 - 15 bar
Stainless steel filter regulators with self-relieving (not for liquid media) containing no non-ferrous metals for use in the food processing, chemical, mining, plant construction and special machinery industries as well as in the medical technology.
Povpraševanje
Merjenje pretoka: At P1 = 10 bar, P2 = 5 bar and pressure drop Δp ≤ 1 bar
Navoj: G 1/2
Odtok kondenzata: Manual drain valve
Ohišje: Stainless steel 1.4404 (AISI 316L)
C [mm]: 127.0
B [mm]: 260.0
Pretok: 2500 l/min
| Šifra | Membrane | Merjenje pretoka | Navoj | A [mm] | Max. sobna temperatura [°C] | Max. temperatura medija [°C] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101207RIE | PTFE on NBR-carrier | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar | G 1/4 | 64.0 | 80 | 80 | 121.0 | 249.0 | 800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 101208RIE | PTFE on NBR-carrier | At P1 = 10 bar, P2 = 5 bar and pressure drop Δp ≤ 1 bar | G 1/2 | 80.0 | 60 | 130 | 127.0 | 260.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | | |
| 129274RIE | PTFE on NBR carrier | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar | G 1/2 | 109.0 | 80 | 80 | 121.0 | 246.0 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Stainless steel filter regulator, 1.4404, with secondary venting (reversible), incl. press. gauge, G 1/2, Control range 1 - 15 bar
Stainless steel filter regulators with self-relieving (not for liquid media) containing no non-ferrous metals for use in the food processing, chemical, mining, plant construction and special machinery industries as well as in the medical technology.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 30 |
| Ohišje | Stainless steel 1.4404 (AISI 316L) |
| Tesnilo | FKM |
| Membrane | PTFE on NBR-carrier |
| Rang filtra [µm] | 50 |
| Max. temperatura medija [°C] | 130 |
| Max. sobna temperatura [°C] | 60 |
| Odtok kondenzata | Manual drain valve |
| Min. krmilno območje [bar] | 1 |
| Max. krmilno območje [bar] | 15 |

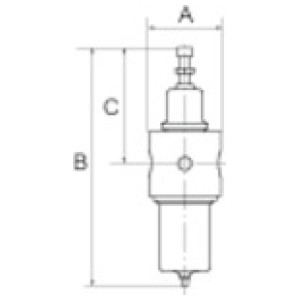

| A [mm] | 80.0 |
| B [mm] | 260.0 |
| C [mm] | 127.0 |
| Merjenje pretoka | At P1 = 10 bar, P2 = 5 bar and pressure drop Δp ≤ 1 bar |
| Pretok | 2500 l/min |
