Filter regulator iz nerjevečega jekla, G 1/4, 1.7 - 17.5 bar
SKU: 137336RIE
EAN: 4047322513197
Stainless steel casting filter regulator, 1.4401, with secondary venting (reversible), Size 1, G 1/4, Control range 1.7 - 17.5 bar
Stainless steel filter regulators with self-relieving (not for liquid media) for use in the chemical industry, mining, plant construction and special machinery industries, pneumatics, etc.
Pressure setting by T-handle.
Obrestno financiranje
- 16,16 € x 48 mesecev
- 20,65 € x 36 mesecev
- 29,67 € x 24 mesecev
- 56,80 € x 12 mesecev
- 111,11 € x 6 mesecev
- 219,76 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Min. krmilno območje [bar] | Velikost | Max. krmilno območje [bar] | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 137341RIE | G 3/4 | 0.4 | 3 | 4 | 82.0 | 121.0 | 233.0 | 10055 | Čas dobave: Predvidoma 3 - 5 dni | 657,42 € |  | |
| 137343RIE | G 1 | 0.4 | 4 | 4 | 120.0 | 136.0 | 301.0 | 11330 | Čas dobave: Predvidoma 3 - 5 dni | 2.600,00 € | | |
| 137337RIE | G 3/8 | 0.4 | 1 | 4 | 62.0 | 115.0 | 227.0 | 4420 | Čas dobave: Predvidoma 3 - 5 dni | 606,78 € | | |
| 137340RIE | G 1/2 | 1.7 | 3 | 17.5 | 82.0 | 121.0 | 233.0 | 7850 | Čas dobave: Predvidoma 3 - 5 dni | 657,42 € | | |
| 137339RIE | G 1/2 | 0.4 | 3 | 4 | 82.0 | 121.0 | 233.0 | 7850 | Čas dobave: Predvidoma 3 - 5 dni | 657,42 € | | |
| 137346RIE | G 1 1/2 | 1.7 | 4 | 17.5 | 120.0 | 136.0 | 301.0 | 11330 | Čas dobave: Predvidoma 3 - 5 dni | 2.600,00 € | | |
| 137342RIE | G 3/4 | 1.7 | 3 | 17.5 | 82.0 | 121.0 | 233.0 | 10055 | Čas dobave: Predvidoma 3 - 5 dni | 657,42 € | | |
| 137345RIE | G 1 1/2 | 0.4 | 4 | 4 | 120.0 | 136.0 | 301.0 | 11330 | Čas dobave: Predvidoma 3 - 5 dni | 2.600,00 € | | |
| 137344RIE | G 1 | 1.7 | 4 | 17.5 | 120.0 | 136.0 | 301.0 | 11330 | Čas dobave: Predvidoma 3 - 5 dni | 2.600,00 € | | |
| 137335RIE | G 1/4 | 0.4 | 1 | 4 | 62.0 | 115.0 | 227.0 | 2095 | Čas dobave: Predvidoma 3 - 5 dni | 606,78 € | | |
| 137338RIE | G 3/8 | 1.7 | 1 | 17.5 | 62.0 | 115.0 | 227.0 | 4420 | Čas dobave: Predvidoma 3 - 5 dni | 606,78 € | | |
| 137336RIE | G 1/4 | 1.7 | 1 | 17.5 | 62.0 | 115.0 | 227.0 | 2095 | Čas dobave: Predvidoma 3 - 5 dni | 606,78 € | |
Opis
Stainless steel casting filter regulator, 1.4401, with secondary venting (reversible), Size 1, G 1/4, Control range 1.7 - 17.5 bar
Stainless steel filter regulators with self-relieving (not for liquid media) for use in the chemical industry, mining, plant construction and special machinery industries, pneumatics, etc.
Pressure setting by T-handle.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 30 |
| Velikost | 1 |
| Ohišje | Stainless steel casting 1.4401 (AISI 316) |
| Tesnilo | NBR |
| Membrane | NBR/PTFE |
| Rang filtra [µm] | 25 |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 60 |
| Odtok kondenzata | Manual drain valve |
| Pretok [l/min] | 2095 |
| Min. krmilno območje [bar] | 1.7 |
| Max. krmilno območje [bar] | 17.5 |

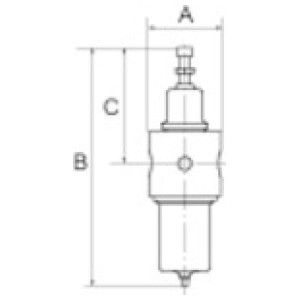

| A [mm] | 62.0 |
| B [mm] | 227.0 |
| C [mm] | 115.0 |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6 bar and pressure drop Δp Δ 1 bar |
