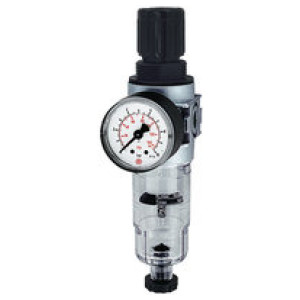

Filter regulator »multifix-mali«, PC zbiralnik, G 1/4, 0.5-10 bar
SKU: 100354RIE
EAN: 4047322344784
Filter regulator »multifix-mini«, PC container and press. gauge, 5 µm, G 1/4, Input pressure max. 16 bar, Control range 0.5-10 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with secondary ventilation, in combination with a centrifugal separator. The pressure setting can be locked by pressing in the handwheel.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Filter regulator »multifix-mali«, PC zbiralnik, G 1/4, 0.5-10 bar
Merjenje pretoka: At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar
Navoj: G 1/4
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc
Posoda: Polycarbonate container
Serija: multifix-mini
Vzmet pokrova motorja: POM-brass
D [mm]: 102.5
B [mm]: 165.5
Navoj: G 1/4
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc
Posoda: Polycarbonate container
Serija: multifix-mini
Vzmet pokrova motorja: POM-brass
D [mm]: 102.5
B [mm]: 165.5
| Šifra | Navoj | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 100352RIE | G 1/8 | 0.5 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100354RIE | G 1/4 | 0.5 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100353RIE | G 1/4 | 0.1 | 3 | 4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100351RIE | G 1/8 | 0.1 | 3 | 4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Filter regulator »multifix-mini«, PC container and press. gauge, 5 µm, G 1/4, Input pressure max. 16 bar, Control range 0.5-10 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with secondary ventilation, in combination with a centrifugal separator. The pressure setting can be locked by pressing in the handwheel.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Tesnilo | NBR |
| Vzmet pokrova motorja | POM-brass |
| Odtok kondenzata | Semi-automatic |
| Pretok [l/min] | 1450 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| DN | 5 |
| Ohišje | Die-cast zinc |
| Rang filtra [µm] | 5 |
| Posoda | Polycarbonate container |

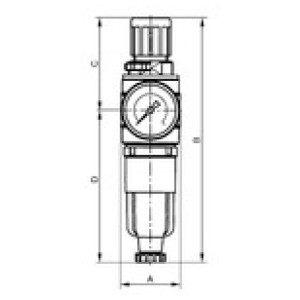

| A [mm] | 40.0 |
| B [mm] | 165.5 |
| C [mm] | 63.0 |
| D [mm] | 102.5 |
| Serija | multifix-mini |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
