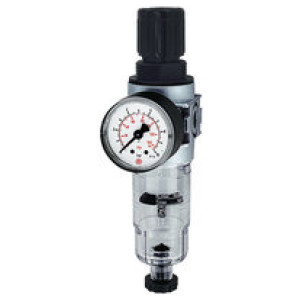

Filter regulator »multifix-mali«, PC zbiralnik, G 1/8, 0.1-3 bar
SKU: 100351RIE
EAN: 4047322344647
Filter regulator »multifix-mini«, PC container and press. gauge, 5 µm, G 1/8, Input pressure max. 16 bar, Control range 0.1-3 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with secondary ventilation, in combination with a centrifugal separator. The pressure setting can be locked by pressing in the handwheel.
Obrestno financiranje
- 10,62 € x 6 mesecev
- 21,00 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
100352RIE | G 1/8 | 0.5 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 57,69 € | ||
100354RIE | G 1/4 | 0.5 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 57,69 € | ||
100353RIE | G 1/4 | 0.1 | 3 | 4 | Čas dobave: Predvidoma 3 - 5 dni | 57,69 € | ||
100351RIE | G 1/8 | 0.1 | 3 | 4 | Čas dobave: Predvidoma 3 - 5 dni | 57,69 € |
Opis
Filter regulator »multifix-mini«, PC container and press. gauge, 5 µm, G 1/8, Input pressure max. 16 bar, Control range 0.1-3 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with secondary ventilation, in combination with a centrifugal separator. The pressure setting can be locked by pressing in the handwheel.
Tehnični podatki in specifikacije
Navoj | G 1/8 |
Max. vhodni tlak [bar] | 16 |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Tesnilo | NBR |
Vzmet pokrova motorja | POM-brass |
Odtok kondenzata | Semi-automatic |
Pretok [l/min] | 1450 |
Min. krmilno območje [bar] | 0.1 |
Max. krmilno območje [bar] | 3 |
Zaslon manometra max. [bar] | 4 |
DN | 5 |
Ohišje | Die-cast zinc |
Rang filtra [µm] | 5 |
Posoda | Polycarbonate container |

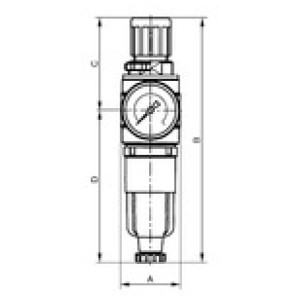

A [mm] | 40.0 |
B [mm] | 165.5 |
C [mm] | 63.0 |
D [mm] | 102.5 |
Serija | multifix-mini |
Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
