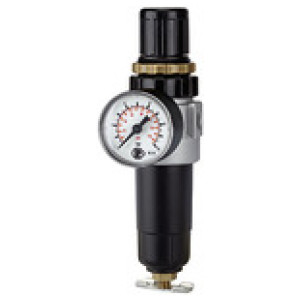

Filter regulator »Stinard-mali«, Kovinska posoda, 5 µm, G 1/4 slika
Filter regulator »Stinard-mali«, Kovinska posoda, 5 µm, G 1/4 slika
Filter regulator »Stinard-mali«, Kovinska posoda, 5 µm, G 1/4 slika

* slike so simbolične

Filter regulator »Stinard-mali«, Kovinska posoda, 5 µm, G 1/4

SKU: 100784RIE
EAN: 4047322102148

Filter regulator »Standard-mini« with metal container incl. press. gauge and control cabinet nut, 5 µm, Size 0, G 1/4, 0.5-10 bar

Compact, reversible diaphragm pressure regulators, independent of inlet pressure, with

self-relieving design, combined with a centrifugal separator.

The pressure setting can be locked by pushing the knob down.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Navoj Zaloga Cena Nakup Natisni
100784RIE G 1/4
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
100783RIE G 1/8
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni

Opis

Filter regulator »Standard-mini« with metal container incl. press. gauge and control cabinet nut, 5 µm, Size 0, G 1/4, 0.5-10 bar

Compact, reversible diaphragm pressure regulators, independent of inlet pressure, with

self-relieving design, combined with a centrifugal separator.

The pressure setting can be locked by pushing the knob down.

Tehnični podatki in specifikacije

Navoj G 1/4
Max. vhodni tlak [bar] 25
Max. temperatura medija [°C] 60
Max. sobna temperatura [°C] 60
Tesnilo NBR
Pretok [l/min] 350
Min. krmilno območje [bar] 0.5
Max. krmilno območje [bar] 10
Zaslon manometra max. [bar] 16
Odtok kondenzata Manual
DN 5
Ohišje Die-cast zinc, painted silver
Rang filtra [µm] 5
Posoda Metal container
Vzmet pokrova motorja POM-brass

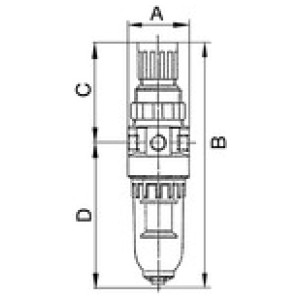

A [mm] 40.0
B [mm] 163.5
C [mm] 65.0
D [mm] 98.5
Serija Standard-mini
Merjenje pretoka At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
