Filter regulator »Stinard-mali« z PC zbiralnik, 5 µm, G 1/8
SKU: 100781RIE
EAN: 4047322355216

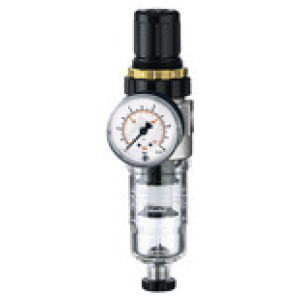

Filter regulator »Standard-mini« with PC container incl. pressure gauge and control cabinet nut, 5 µm, Size 0, G 1/8, 0.5 - 10 bar
Compact, reversible diaphragm pressure regulators, independent of inlet pressure, with
self-relieving design, combined with a centrifugal separator.
The pressure setting can be locked by pushing the knob down.
Obrestno financiranje
- 11,53 € x 6 mesecev
- 22,81 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 100781RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 63,06 € |  | |
| 100782RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 63,06 € | |
Opis
Filter regulator »Standard-mini« with PC container incl. pressure gauge and control cabinet nut, 5 µm, Size 0, G 1/8, 0.5 - 10 bar
Compact, reversible diaphragm pressure regulators, independent of inlet pressure, with
self-relieving design, combined with a centrifugal separator.
The pressure setting can be locked by pushing the knob down.
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. vhodni tlak [bar] | 16 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Tesnilo | NBR |
| Pretok [l/min] | 350 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Odtok kondenzata | Semi-automatic |
| DN | 5 |
| Ohišje | Die-cast zinc, painted silver |
| Rang filtra [µm] | 5 |
| Posoda | Polycarbonate container |
| Vzmet pokrova motorja | POM-brass |

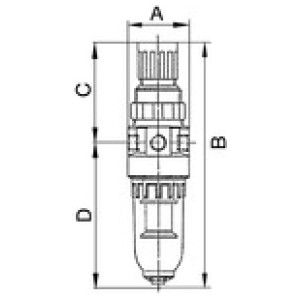

| A [mm] | 40.0 |
| B [mm] | 167.0 |
| C [mm] | 65.0 |
| D [mm] | 102.0 |
| Serija | Standard-mini |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
