Filter regulator »variobloc« z zaščitno kletko, Velikost 1, G 1/4

SKU: 124776RIE
EAN: 4047322397032

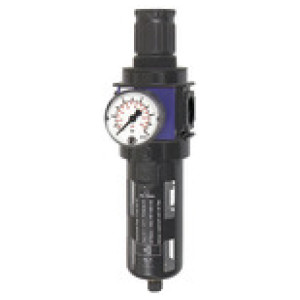

Filter regulator »variobloc«, PC container, Protective cage and pressure gauge, Size 1, G 1/4, Input pressure max. 16 bar

Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined

with a centrifugal separator.

The pressure setting can be locked by pushing the knob down.

Approved series in modern industrial design, with the following key benefits:

- Simple handling

- Convenient modular assembly thanks to innovative fasteners

- Excellent flow values

Čas dobave: Predvidoma 3 - 5 dni
107,60 €
ali od 10,11 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,11 € x 12 mesecev
  • 19,77 € x 6 mesecev
  • 39,10 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj Velikost A [mm] C [mm] B [mm] Pretok [l/min] Zaloga Cena Nakup Natisni
124796RIE G 3/4 2 70.0 98.0 273.0 6500
Čas dobave: Predvidoma 3 - 5 dni
161,60 € Natisni
124787RIE G 1/2 2 70.0 98.0 273.0 5500
Čas dobave: Predvidoma 3 - 5 dni
161,60 € Natisni
124803RIE G 1 2 124.0 98.0 273.0 6500
Čas dobave: Predvidoma 3 - 5 dni
211,54 € Natisni
124782RIE G 3/8 1 48.0 68.0 203.0 3000
Čas dobave: Predvidoma 3 - 5 dni
107,60 € Natisni
124776RIE G 1/4 1 48.0 68.0 203.0 2000
Čas dobave: Predvidoma 3 - 5 dni
107,60 € Natisni

Opis

Filter regulator »variobloc«, PC container, Protective cage and pressure gauge, Size 1, G 1/4, Input pressure max. 16 bar

Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined

with a centrifugal separator.

The pressure setting can be locked by pushing the knob down.

Approved series in modern industrial design, with the following key benefits:

- Simple handling

- Convenient modular assembly thanks to innovative fasteners

- Excellent flow values

Tehnični podatki in specifikacije

Navoj G 1/4
Max. vhodni tlak [bar] 16
Velikost 1
Ohišje Die-cast zinc
Tesnilo NBR
Membrane NBR
Rang filtra [µm] 40
Max. temperatura medija [°C] 50
Max. sobna temperatura [°C] 50
Vzmet pokrova motorja POM
Odtok kondenzata Manual
Min. krmilno območje [bar] 0.5
Max. krmilno območje [bar] 10
Zaslon manometra max. [bar] 10
Pretok [l/min] 2000
Posoda Polycarbonate container with protective cage

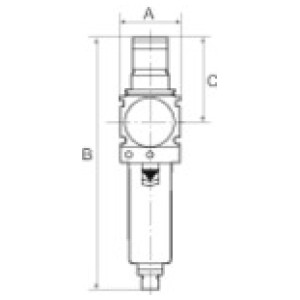

A [mm] 48.0
B [mm] 203.0
C [mm] 68.0
Serija variobloc
Merjenje pretoka At P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar
