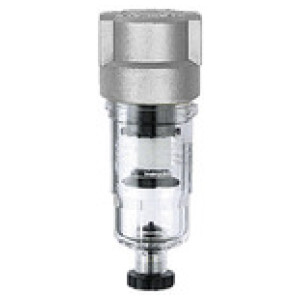

Filter »Stinard-mali« z PC zbiralnik, 8 µm, Velikost 0, G 1/8
SKU: 100786RIE
EAN: 4047322359061
Filter »Standard-mini« with PC container, 8 µm, Size 0, G 1/8, Input pressure max. 16 bar, Medium / ambient temperature max. 60 °C
Centrifugal separators with a sintered filter element. Compact design.
Čas dobave: Predvidoma 3 - 5 dni
28,29 €
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 100786RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 28,29 € |  | |
| 100787RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 28,29 € | |
Opis
Filter »Standard-mini« with PC container, 8 µm, Size 0, G 1/8, Input pressure max. 16 bar, Medium / ambient temperature max. 60 °C
Centrifugal separators with a sintered filter element. Compact design.
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. vhodni tlak [bar] | 16 |
| Ohišje | Die-cast zinc, painted silver |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 800 |
| Odtok kondenzata | Semi-automatic |
| DN | 5 |
| Rang filtra [µm] | 8 |
| Posoda | Polycarbonate container |
| Tesnilo | NBR |

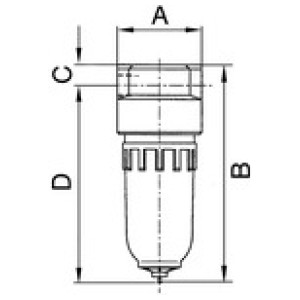

| A [mm] | 40.0 |
| B [mm] | 112.0 |
| C [mm] | 10.0 |
| D [mm] | 102.0 |
| Serija | Standard-mini |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
