* slike so simbolične

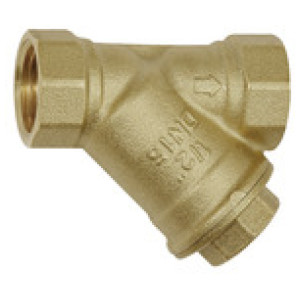

Filter umazan., lahka med., G 1 1/4, DN 32, šrina mrežice 0.5 mm
SKU: 105693RIE
EAN: 4047322394758
Dirt strainer, bright brass, Sieve insert mesh width 0.5 mm, Operating temp. -20 °C to 110 °C, G 1 1/4, DN 32, PN max. 20 bar
Suitable for domestic water services, heating and air conditioning plants or compressed air systems. Not suitable for steam.
Čas dobave: Predvidoma 3 - 5 dni
37,27 €

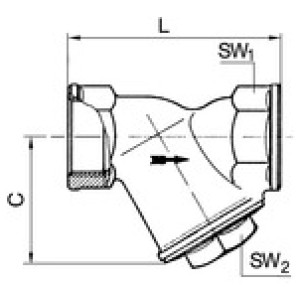

| Šifra | Navoj | Velikost mrežice [mm] | Max. obratovalni tlak [bar] | a/f 2 [mm] | DN | a/f 1 [mm] | C [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 140984RIE | G 2 1/2 | 0.8 | 16 | 48 | 65 | 85 | 105.0 | 150.0 | Čas dobave: Predvidoma 3 - 5 dni | 137,88 € |  | |
| 105690RIE | G 1/2 | 0.5 | 20 | 20 | 15 | 25 | 40.0 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,14 € | | |
| 105695RIE | G 2 | 0.5 | 20 | 46 | 50 | 67 | 89.0 | 126.0 | Čas dobave: Predvidoma 3 - 5 dni | 80,93 € | | |
| 105688RIE | G 1/4 | 0.5 | 20 | 20 | 8 | 18 | 40.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,08 € | | |
| 105692RIE | G 1 | 0.5 | 20 | 32 | 25 | 38 | 56.0 | 87.0 | Čas dobave: Predvidoma 3 - 5 dni | 24,01 € | | |
| 140985RIE | G 3 | 0.8 | 16 | 55 | 80 | 99 | 120.0 | 169.0 | Čas dobave: Predvidoma 3 - 5 dni | 197,77 € | | |
| 105689RIE | G 3/8 | 0.5 | 20 | 20 | 10 | 21 | 40.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,08 € | | |
| 105691RIE | G 3/4 | 0.5 | 20 | 27 | 20 | 31 | 48.0 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,35 € | | |
| 126304RIE | G 4 | 0.8 | 16 | 100 | 100 | 125 | 162.0 | 219.0 | Čas dobave: Predvidoma 3 - 5 dni | 386,51 € | | |
| 105694RIE | G 1 1/2 | 0.5 | 20 | 38 | 40 | 57 | 73.0 | 106.0 | Čas dobave: Predvidoma 3 - 5 dni | 49,48 € | | |
| 105693RIE | G 1 1/4 | 0.5 | 20 | 36 | 32 | 47 | 64.0 | 96.0 | Čas dobave: Predvidoma 3 - 5 dni | 37,27 € | |
Opis
Dirt strainer, bright brass, Sieve insert mesh width 0.5 mm, Operating temp. -20 °C to 110 °C, G 1 1/4, DN 32, PN max. 20 bar
Suitable for domestic water services, heating and air conditioning plants or compressed air systems. Not suitable for steam.
Tehnični podatki in specifikacije
| Ohišje | Brass |
| Max. obratovalni tlak [bar] | 20 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 110 |
| Navoj | G 1 1/4 |
| DN | 32 |
| Zaslon | Stainless steel |
| Tesnilo | NBR O-ring |
| Glava | Brass |
| Standardni navoj | G thread acc. to ISO 228-1, tolerance class B |
| L [mm] | 96.0 |
| C [mm] | 64.0 |
| a/f 1 [mm] | 47 |
| a/f 2 [mm] | 36 |
| Velikost mrežice [mm] | 0.5 |
