* slike so simbolične

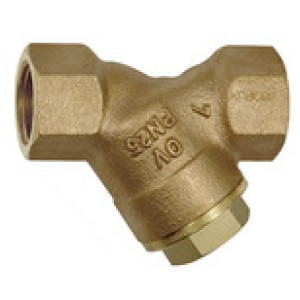

Filter umazan., rdeč med., 3/8, DN 10, šrina mrežice 0.6 mm
SKU: 143322RIE
EAN: 4047322564250
Dirt strainer, Red brass, Sieve insert mesh width 0.6 mm, Operating temperature -10 °C to 150 °C, Rp 3/8, DN 10, PN max. 25 bar
For liquids, gases, steam, water, mineral, fuel and hydraulic oils, fuels and other
non-corrosive media in a liquid or gaseous state.
Čas dobave 3 - 5 dni
31,38 €

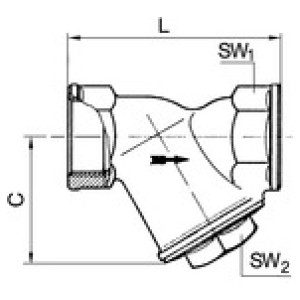

| Šifra | Navoj | Zaslon | DN | a/f 2 [mm] | a/f 1 [mm] | C [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 143328RIE | G 2 | Double stainless steel screen | 50 | 56 | 66 | 94.0 | 150.0 | Čas dobave 3 - 5 dni | 175,23 € |  | |
| 143321RIE | G 1/4 | Double stainless steel screen | 8 | 17 | 21 | 34.0 | 56.0 | Čas dobave 3 - 5 dni | 31,38 € | | |
| 143326RIE | G 1 1/4 | Simple stainless steel screen | 32 | 41 | 47 | 73.0 | 112.0 | Čas dobave 3 - 5 dni | 84,41 € | | |
| 143323RIE | Rp 1/2 | Double stainless steel screen | 15 | 22 | 27 | 42.0 | 66.5 | Čas dobave 3 - 5 dni | 33,46 € | | |
| 143327RIE | G 1 1/2 | Double stainless steel screen | 40 | 46 | 54 | 82.0 | 120.0 | Čas dobave 3 - 5 dni | 114,48 € | | |
| 143324RIE | Rp 3/4 | Double stainless steel screen | 20 | 27 | 32 | 52.0 | 76.5 | Čas dobave 3 - 5 dni | 47,56 € | | |
| 143322RIE | Rp 3/8 | Double stainless steel screen | 10 | 17 | 22 | 34.0 | 63.5 | Čas dobave 3 - 5 dni | 31,38 € | | |
| 143325RIE | G 1 | Double stainless steel screen | 25 | 32 | 38 | 61.0 | 90.0 | Čas dobave 3 - 5 dni | 55,97 € | |
Opis
Dirt strainer, Red brass, Sieve insert mesh width 0.6 mm, Operating temperature -10 °C to 150 °C, Rp 3/8, DN 10, PN max. 25 bar
For liquids, gases, steam, water, mineral, fuel and hydraulic oils, fuels and other
non-corrosive media in a liquid or gaseous state.
Tehnični podatki in specifikacije
| Ohišje | Red brass |
| Max. obratovalni tlak [bar] | 25 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 150 |
| Navoj | Rp 3/8 |
| DN | 10 |
| Zaslon | Double stainless steel screen |
| Tesnilo | FKM (FPM) O-ring |
| Glava | Brass |
| L [mm] | 63.5 |
| C [mm] | 34.0 |
| a/f 1 [mm] | 22 |
| a/f 2 [mm] | 17 |
| Velikost mrežice [mm] | 0.6 |
