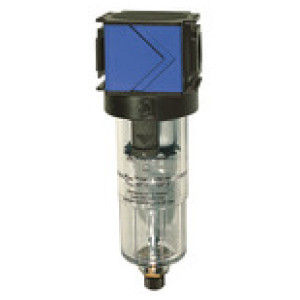

Filter »variobloc« z PC zbiralnik, Velikost 2, G 3/4

SKU: 100681RIE
EAN: 4047322168571

Filter »variobloc«, PC container, Size 2, G 3/4, Input pressure max. 16 bar, Med. / ambient temp. max. 50 °C, Manual bleeder valve

Centrifugal separators with a sintered filter element.

Filtration takes place in a 2-stage process comprising cyclone separation (condensate) and a PE filter element (particles).

Approved series in modern industrial design, with the following key benefits:

- Simple handling

- Convenient modular assembly thanks to innovative fasteners

- Excellent flow values

Čas dobave: Predvidoma 3 - 5 dni
77,26 €
ali od 14,10 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 14,10 € x 6 mesecev
  • 27,88 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj Velikost C [mm] A [mm] B [mm] Pretok [l/min] Zaloga Cena Nakup Natisni
100679RIE G 3/8 1 22.0 48.0 155.0 2000
Čas dobave: Predvidoma 3 - 5 dni
48,30 € Natisni
100680RIE G 1/2 2 26.0 70.0 202.0 3200
Čas dobave: Predvidoma 3 - 5 dni
77,26 € Natisni
100682RIE G 1 2 26.0 124.0 202.0 3500
Čas dobave: Predvidoma 3 - 5 dni
128,50 € Natisni
100678RIE G 1/4 1 22.0 48.0 155.0 1800
Čas dobave: Predvidoma 3 - 5 dni
48,30 € Natisni
100681RIE G 3/4 2 26.0 70.0 202.0 3500
Čas dobave: Predvidoma 3 - 5 dni
77,26 € Natisni

Opis

Filter »variobloc«, PC container, Size 2, G 3/4, Input pressure max. 16 bar, Med. / ambient temp. max. 50 °C, Manual bleeder valve

Centrifugal separators with a sintered filter element.

Filtration takes place in a 2-stage process comprising cyclone separation (condensate) and a PE filter element (particles).

Approved series in modern industrial design, with the following key benefits:

- Simple handling

- Convenient modular assembly thanks to innovative fasteners

- Excellent flow values

Tehnični podatki in specifikacije

Navoj G 3/4
Max. vhodni tlak [bar] 16
Velikost 2
Max. temperatura medija [°C] 50
Max. sobna temperatura [°C] 50
Pretok [l/min] 3500
Posoda Polycarbonate container

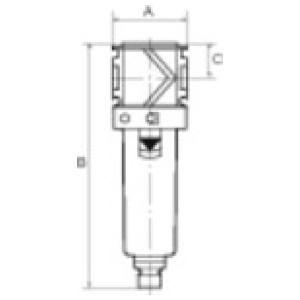

A [mm] 70.0
B [mm] 202.0
C [mm] 26.0
Serija variobloc
Merjenje pretoka At P1 = 6 bar and pressure drop Δp = 1 bar
Ohišje Die-cast zinc
Tesnilo NBR
Rang filtra [µm] 40
Odtok kondenzata Manual
