* slike so simbolične

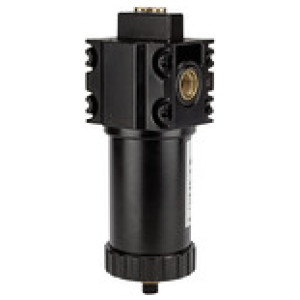

Filter z aktivnim ogljem brez diferencialnega manometra, G 3/8
SKU: 101585RIE
EAN: 4047322087155
Active charcoal filter without differential pressure gauge, 0.005 mg/m³, G 3/8, Input pressure 4 - 16 bar, Temp. 5 °C to 60 °C
For adsorbing vaporous media.
A micro-filter must be connected upstream if dried air is not available.
Čas dobave 3 - 5 dni
Povpraševanje
Filter z aktivnim ogljem brez diferencialnega manometra, G 3/8
Element filtra: Activated carbon
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 0.5%
Navoj: G 3/8
Ohišje: Aluminium
Posoda filtra: Aluminium
Vsebnost olja v ostanku [mg/m³]: 0.005
B2 [mm]: 245.0
D [mm]: 263.0
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 0.5%
Navoj: G 3/8
Ohišje: Aluminium
Posoda filtra: Aluminium
Vsebnost olja v ostanku [mg/m³]: 0.005
B2 [mm]: 245.0
D [mm]: 263.0

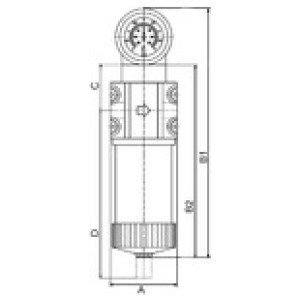

| Šifra | Navoj | C [mm] | A [mm] | B2 [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 101585RIE | G 3/8 | 57.0 | 83.0 | 245.0 | 263.0 | 500 | Čas dobave 3 - 5 dni | ? | Povpraševanje |  |
| 101590RIE | G 1 1/2 | 72.0 | 118.0 | 530.0 | 768.0 | 4150 | Čas dobave 3 - 5 dni | 714,52 € | | |
| 101587RIE | G 3/4 | 57.0 | 83.0 | 315.0 | 403.0 | 1000 | Čas dobave 3 - 5 dni | 293,68 € | | |
| 101588RIE | G 1 | 72.0 | 118.0 | 330.0 | 368.0 | 1500 | Čas dobave 3 - 5 dni | 499,87 € | | |
| 101589RIE | G 1 1/4 | 72.0 | 118.0 | 430.0 | 568.0 | 2650 | Čas dobave 3 - 5 dni | 629,13 € | | |
| 101586RIE | G 1/2 | 57.0 | 83.0 | 245.0 | 263.0 | 500 | Čas dobave 3 - 5 dni | 244,30 € | | |
| 101584RIE | G 1/4 | 57.0 | 83.0 | 245.0 | 263.0 | 500 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 101591RIE | G 2 | 72.0 | 118.0 | 720.0 | 1.148.0 | 6650 | Čas dobave 3 - 5 dni | 879,61 € | |
Opis
Active charcoal filter without differential pressure gauge, 0.005 mg/m³, G 3/8, Input pressure 4 - 16 bar, Temp. 5 °C to 60 °C
For adsorbing vaporous media.
A micro-filter must be connected upstream if dried air is not available.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Min. vhodni tlak [bar] | 4 |
| Ohišje | Aluminium |
| Element filtra | Activated carbon |
| Posoda filtra | Aluminium |
| Min. temperatura medija [°C] | 5 |
| Max. temperatura medija [°C] | 60 |
| Min. sobna temperatura [°C] | 5 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 500 |
| A [mm] | 83.0 |
| B2 [mm] | 245.0 |
| C [mm] | 57.0 |
| D [mm] | 263.0 |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 0.5% |
| Vsebnost olja v ostanku [mg/m³] | 0.005 |
