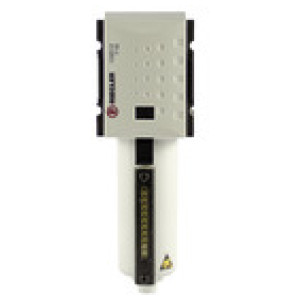

Filter z aktivnim ogljem»FUTURA«Kov. pos.Vel.1, G 1/4

SKU: 156646RIE
EAN: 4047322629553

Active charcoal filter »FUTURA« with metal container and viewing tube, 0.005 mg/m³, Size 1, G 1/4, Input pressure 0 - 16 bar

Activated carbon filters in modern design for compliance with strict compressed air purity requirements.

Activated carbon filters are used to absorb oil vapour up to a residual oil content of 0.005 mg/m³ from compressed air and gases.

Čas dobave 3 - 5 dni
131,65 €
ali od 12,35 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 12,35 € x 12 mesecev
  • 24,16 € x 6 mesecev
  • 47,79 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj Velikost C [mm] A [mm] B [mm] Pretok [l/min] Zaloga Cena Nakup Natisni
139512RIE G 3/8 2 42.5 63.0 187.5 1700
Čas dobave 3 - 5 dni
219,53 € Natisni
156646RIE G 1/4 1 34.0 52.0 158.0 470
Čas dobave 3 - 5 dni
131,65 € Natisni
139513RIE G 1/2 2 42.5 63.0 187.5 1700
Čas dobave 3 - 5 dni
219,53 € Natisni
156649RIE G 1 4 58.0 85.0 241.0 2500
Čas dobave 3 - 5 dni
272,77 € Natisni
156647RIE G 3/8 1 34.0 52.0 158.0 470
Čas dobave 3 - 5 dni
131,65 € Natisni
156648RIE G 3/4 4 58.0 85.0 241.0 2500
Čas dobave 3 - 5 dni
272,77 € Natisni

Opis

Active charcoal filter »FUTURA« with metal container and viewing tube, 0.005 mg/m³, Size 1, G 1/4, Input pressure 0 - 16 bar

Activated carbon filters in modern design for compliance with strict compressed air purity requirements.

Activated carbon filters are used to absorb oil vapour up to a residual oil content of 0.005 mg/m³ from compressed air and gases.

Tehnični podatki in specifikacije

Navoj G 1/4
Max. vhodni tlak [bar] 16
Velikost 1
Min. temperaturno območje [°C] -10
Max. temperaturno območje [°C] 50
Ohišje PA66 GF60
Priključni navoj Material: Die-cast zinc
Element filtra Activated carbon
Pretok [l/min] 470
Posoda Metal container with viewing tube

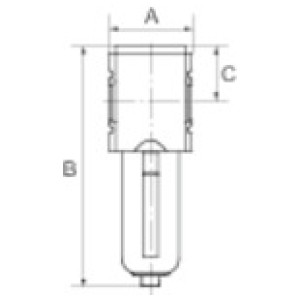

A [mm] 52.0
B [mm] 158.0
C [mm] 34.0
Serija FUTURA
Srednje Compressed air, neutral gases
Merjenje pretoka At P2 = 6 bar and pressure drop Δp = 0.2 bar
Vsebnost olja v ostanku [mg/m³] 0.005
