Filter z aktivnim ogljem»FUTURA«Kov. pos.Vel.4, G 3/4
SKU: 156648RIE
EAN: 4047322629584
Active charcoal filter »FUTURA« with metal container and viewing tube, 0.005 mg/m³, Size 4, G 3/4, Input pressure 0 - 16 bar
Activated carbon filters in modern design for compliance with strict compressed air purity requirements.
Activated carbon filters are used to absorb oil vapour up to a residual oil content of 0.005 mg/m³ from compressed air and gases.
Obrestno financiranje
- 13,35 € x 24 mesecev
- 25,55 € x 12 mesecev
- 49,97 € x 6 mesecev
- 98,84 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

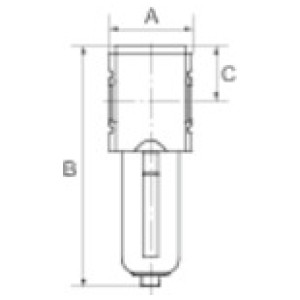

| Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 139512RIE | G 3/8 | 2 | 42.5 | 63.0 | 187.5 | 1700 | Čas dobave: Predvidoma 3 - 5 dni | 219,53 € |  | |
| 156646RIE | G 1/4 | 1 | 34.0 | 52.0 | 158.0 | 470 | Čas dobave: Predvidoma 3 - 5 dni | 131,65 € | | |
| 139513RIE | G 1/2 | 2 | 42.5 | 63.0 | 187.5 | 1700 | Čas dobave: Predvidoma 3 - 5 dni | 219,53 € | | |
| 156649RIE | G 1 | 4 | 58.0 | 85.0 | 241.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 272,77 € | | |
| 156647RIE | G 3/8 | 1 | 34.0 | 52.0 | 158.0 | 470 | Čas dobave: Predvidoma 3 - 5 dni | 131,65 € | | |
| 156648RIE | G 3/4 | 4 | 58.0 | 85.0 | 241.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 272,77 € | |
Opis
Active charcoal filter »FUTURA« with metal container and viewing tube, 0.005 mg/m³, Size 4, G 3/4, Input pressure 0 - 16 bar
Activated carbon filters in modern design for compliance with strict compressed air purity requirements.
Activated carbon filters are used to absorb oil vapour up to a residual oil content of 0.005 mg/m³ from compressed air and gases.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Element filtra | Activated carbon |
| Pretok [l/min] | 2500 |
| Posoda | Metal container with viewing tube |
| A [mm] | 85.0 |
| B [mm] | 241.0 |
| C [mm] | 58.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 0.2 bar |
| Vsebnost olja v ostanku [mg/m³] | 0.005 |
