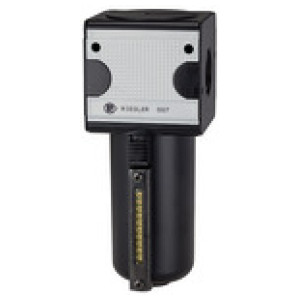

Filter z aktivnim ogljem »multifix«Kov. pos.Vel. 3G 1/2
SKU: 100544RIE
EAN: 4047322131230
Active charcoal filter »multifix« with metal container, 0.005 mg/m³, Size 3, G 1/2, Input pressure max. 20 bar, Temp. max. 60 °C
For filtering odours out of compressed air.
The activated carbon absorbs the oil vapour molecules contained in the compressed air.
A separate filter route prevents activated carbon particles from entering the air flow.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Filter z aktivnim ogljem »multifix«Kov. pos.Vel. 3G 1/2
Element filtra: Activated carbon-POM
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 0.2 bar
Navoj: G 1/2
Ohišje: Die-cast zinc
Posoda: Metal container
Serija: multifix
Vsebnost olja v ostanku [mg/m³]: 0.005
D [mm]: 133.7
B [mm]: 168.2
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 0.2 bar
Navoj: G 1/2
Ohišje: Die-cast zinc
Posoda: Metal container
Serija: multifix
Vsebnost olja v ostanku [mg/m³]: 0.005
D [mm]: 133.7
B [mm]: 168.2
| Šifra | Navoj | Ohišje | Velikost | DN | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133152RIE | G 1 | Die-cast aluminium | 4 | 25 | 58.0 | 85.0 | 182.0 | 240.0 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100543RIE | G 1/4 | Die-cast zinc | 1 | 6 | 27.0 | 47.8 | 110.0 | 137.0 | 380 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100544RIE | G 1/2 | Die-cast zinc | 3 | 15 | 34.5 | 68.8 | 133.7 | 168.2 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133151RIE | G 3/4 | Die-cast aluminium | 4 | 20 | 58.0 | 85.0 | 182.0 | 240.0 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Active charcoal filter »multifix« with metal container, 0.005 mg/m³, Size 3, G 1/2, Input pressure max. 20 bar, Temp. max. 60 °C
For filtering odours out of compressed air.
The activated carbon absorbs the oil vapour molecules contained in the compressed air.
A separate filter route prevents activated carbon particles from entering the air flow.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 20 |
| Velikost | 3 |
| Tesnilo | NBR |
| Element filtra | Activated carbon-POM |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 1500 |
| DN | 15 |
| Ohišje | Die-cast zinc |
| Posoda | Metal container |

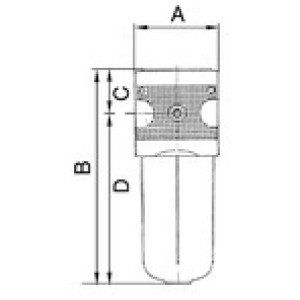

| A [mm] | 68.8 |
| B [mm] | 168.2 |
| C [mm] | 34.5 |
| D [mm] | 133.7 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 0.2 bar |
| Vsebnost olja v ostanku [mg/m³] | 0.005 |
