* slike so simbolične
Filter z aktivnim ogljem »multifix«Kov. pos.Vel.4,G 3/4
SKU: 133151RIE
EAN: 4047322476409

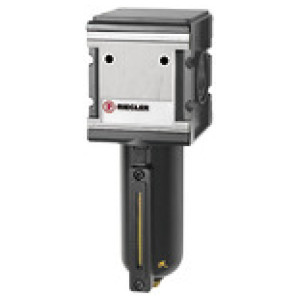

Active charcoal filter »multifix« with metal container, 0.005 mg/m³, Size 4, G 3/4, Input pressure max. 20 bar, Temp. max. 60 °C
For filtering odours out of compressed air.
The activated carbon absorbs the oil vapour molecules contained in the compressed air.
A separate filter route prevents activated carbon particles from entering the air flow.
Obrestno financiranje
- 10,22 € x 48 mesecev
- 13,07 € x 36 mesecev
- 18,77 € x 24 mesecev
- 35,93 € x 12 mesecev
- 70,29 € x 6 mesecev
- 139,02 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

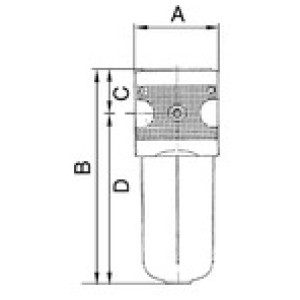

| Šifra | Navoj | Ohišje | Velikost | DN | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133152RIE | G 1 | Die-cast aluminium | 4 | 25 | 58.0 | 85.0 | 182.0 | 240.0 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | 384,04 € |  | |
| 100543RIE | G 1/4 | Die-cast zinc | 1 | 6 | 27.0 | 47.8 | 110.0 | 137.0 | 380 | Čas dobave: Predvidoma 3 - 5 dni | 140,76 € | | |
| 100544RIE | G 1/2 | Die-cast zinc | 3 | 15 | 34.5 | 68.8 | 133.7 | 168.2 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 207,63 € | | |
| 133151RIE | G 3/4 | Die-cast aluminium | 4 | 20 | 58.0 | 85.0 | 182.0 | 240.0 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | 384,04 € | |
Opis
Active charcoal filter »multifix« with metal container, 0.005 mg/m³, Size 4, G 3/4, Input pressure max. 20 bar, Temp. max. 60 °C
For filtering odours out of compressed air.
The activated carbon absorbs the oil vapour molecules contained in the compressed air.
A separate filter route prevents activated carbon particles from entering the air flow.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 20 |
| Velikost | 4 |
| Tesnilo | NBR |
| Element filtra | Activated carbon-POM |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 3000 |
| DN | 20 |
| Ohišje | Die-cast aluminium |
| Posoda | Metal container |
| A [mm] | 85.0 |
| B [mm] | 240.0 |
| C [mm] | 58.0 |
| D [mm] | 182.0 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 0.2 bar |
| Vsebnost olja v ostanku [mg/m³] | 0.005 |
