* slike so simbolične

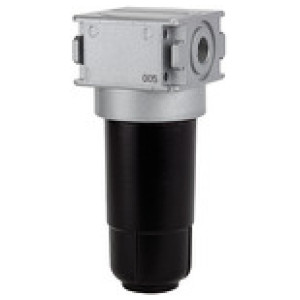

Filter z aktivnim ogljem »multifix-mali«, Kovinska posoda, G 1/8
SKU: 100378RIE
EAN: 4047322131162
Active charcoal filter »multifix-mini«, metal container, 0.005 mg/m³, G 1/8, Input press. max. 16 bar, Med./ambient temp. max.60°C
For filtering odours out of compressed air.
The activated carbon absorbs the oil vapour molecules contained in the compressed air.
A separate filter route prevents activated carbon particles from entering the air flow.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Filter z aktivnim ogljem »multifix-mali«, Kovinska posoda, G 1/8
Element filtra: Activated carbon-POM
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 0.2 bar
Navoj: G 1/8
Ohišje: Die-cast zinc
Posoda: Metal container
Serija: multifix-mini
Vsebnost olja v ostanku [mg/m³]: 0.005
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 0.2 bar
Navoj: G 1/8
Ohišje: Die-cast zinc
Posoda: Metal container
Serija: multifix-mini
Vsebnost olja v ostanku [mg/m³]: 0.005
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 100378RIE | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
Opis
Active charcoal filter »multifix-mini«, metal container, 0.005 mg/m³, G 1/8, Input press. max. 16 bar, Med./ambient temp. max.60°C
For filtering odours out of compressed air.
The activated carbon absorbs the oil vapour molecules contained in the compressed air.
A separate filter route prevents activated carbon particles from entering the air flow.
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. vhodni tlak [bar] | 16 |
| Tesnilo | NBR |
| Element filtra | Activated carbon-POM |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 310 |
| DN | 5 |
| Ohišje | Die-cast zinc |
| Posoda | Metal container |

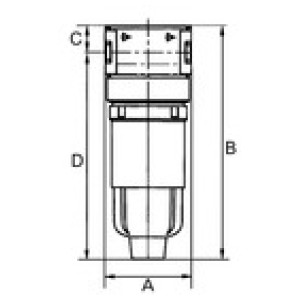

| A [mm] | 40.0 |
| B [mm] | 97.3 |
| C [mm] | 12.3 |
| D [mm] | 85.0 |
| Serija | multifix-mini |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 0.2 bar |
| Vsebnost olja v ostanku [mg/m³] | 0.005 |
