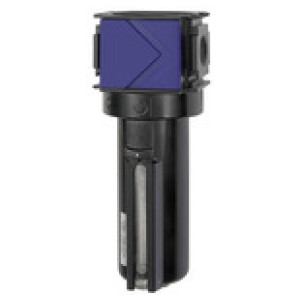

Filter z aktivnim ogljem »variobloc« Kov. pos.Vel.1,G 1/4
SKU: 125330RIE
EAN: 4047322397698
Active charcoal filter »variobloc« with metal container incl. viewing tube, 0.003 mg/m³, Size 1, G 1/4, Input pressure max. 20 bar
Activated carbon filters are used to absorb oil vapour from the compressed air. The incoming compressed air should be dry and free of impurities (upstream connection of a micro-filter is recommended).
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Filter z aktivnim ogljem »variobloc« Kov. pos.Vel.1,G 1/4
Kakovost zraka po ISO 8573.1: Class 1 dirt, class 1 oil
Merjenje pretoka: At P1 = 7 bar and pressure drop Δp = 0,2 bar
Navoj: G 1/4
Posoda: Metal container with viewing tube
Serija: variobloc
Vsebnost olja v ostanku [mg/m³]: 0.003
B [mm]: 142.0
Merjenje pretoka: At P1 = 7 bar and pressure drop Δp = 0,2 bar
Navoj: G 1/4
Posoda: Metal container with viewing tube
Serija: variobloc
Vsebnost olja v ostanku [mg/m³]: 0.003
B [mm]: 142.0
| Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 125331RIE | G 3/8 | 1 | 22.0 | 48.0 | 142.0 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 125334RIE | G 1 | 2 | 26.0 | 124.0 | 193.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 125332RIE | G 1/2 | 2 | 26.0 | 70.0 | 193.0 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 125333RIE | G 3/4 | 2 | 26.0 | 70.0 | 193.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 125330RIE | G 1/4 | 1 | 22.0 | 48.0 | 142.0 | 800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Active charcoal filter »variobloc« with metal container incl. viewing tube, 0.003 mg/m³, Size 1, G 1/4, Input pressure max. 20 bar
Activated carbon filters are used to absorb oil vapour from the compressed air. The incoming compressed air should be dry and free of impurities (upstream connection of a micro-filter is recommended).
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 20 |
| Velikost | 1 |
| Max. temperatura medija [°C] | 50 |
| Max. sobna temperatura [°C] | 80 |
| Pretok [l/min] | 800 |
| Posoda | Metal container with viewing tube |
| A [mm] | 48.0 |
| B [mm] | 142.0 |
| C [mm] | 22.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 7 bar and pressure drop Δp = 0,2 bar |
| Kakovost zraka po ISO 8573.1 | Class 1 dirt, class 1 oil |
| Vsebnost olja v ostanku [mg/m³] | 0.003 |
