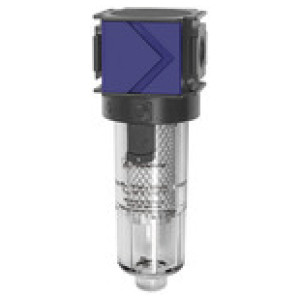

Filter z aktivnim ogljem »variobloc«PC zbir.Vel.1,G 3/8
SKU: 100693RIE
EAN: 4047322390897
Active charcoal filter »variobloc« with PC container, 0.003 mg/m³, Size 1, G 3/8, Input pressure max. 16 bar, Temp. max. 50 °C
Activated carbon filters are used to absorb oil vapour from the compressed air. The incoming compressed air should be dry and free of impurities (upstream connection of a micro-filter is recommended).

Obrestno financiranje
- 10,85 € x 12 mesecev
- 21,23 € x 6 mesecev
- 42,00 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
100695RIE | G 3/4 | 2 | 26.0 | 70.0 | 193.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | 173,24 € | | |
100696RIE | G 1 | 2 | 26.0 | 124.0 | 193.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | 232,30 € | | |
100692RIE | G 1/4 | 1 | 22.0 | 48.0 | 142.0 | 800 | Čas dobave: Predvidoma 3 - 5 dni | 115,64 € | | |
100694RIE | G 1/2 | 2 | 26.0 | 70.0 | 193.0 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | 173,24 € | | |
100693RIE | G 3/8 | 1 | 22.0 | 48.0 | 142.0 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 115,64 € | |
Opis
Active charcoal filter »variobloc« with PC container, 0.003 mg/m³, Size 1, G 3/8, Input pressure max. 16 bar, Temp. max. 50 °C
Activated carbon filters are used to absorb oil vapour from the compressed air. The incoming compressed air should be dry and free of impurities (upstream connection of a micro-filter is recommended).
Tehnični podatki in specifikacije
Navoj | G 3/8 |
Max. vhodni tlak [bar] | 16 |
Velikost | 1 |
Max. temperatura medija [°C] | 50 |
Max. sobna temperatura [°C] | 50 |
Pretok [l/min] | 1000 |
Posoda | Polycarbonate container |

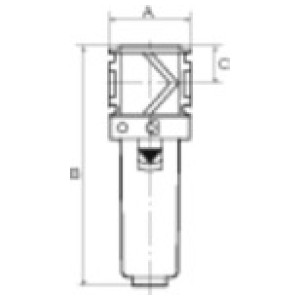

A [mm] | 48.0 |
B [mm] | 142.0 |
C [mm] | 22.0 |
Serija | variobloc |
Merjenje pretoka | At P1 = 7 bar and pressure drop Δp = 0,2 bar |
Kakovost zraka po ISO 8573.1 | Class 1 dirt, class 1 oil |
Vsebnost olja v ostanku [mg/m³] | 0.003 |
