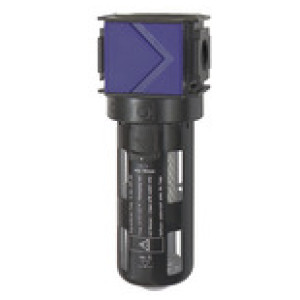

Filter z aktivnim ogljem »variobloc« Zašč. kletkaVel.1,G 1/4
SKU: 125325RIE
EAN: 4047322397599
Active charcoal filter »variobloc« with PC container and protective cage, 0.003 mg/m³, Size 1, G 1/4, Input pressure max. 16 bar
Activated carbon filters are used to absorb oil vapour from the compressed air. The incoming compressed air should be dry and free of impurities (upstream connection of a micro-filter is recommended).
Obrestno financiranje
- 12,73 € x 12 mesecev
- 24,89 € x 6 mesecev
- 49,24 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 125326RIE | G 3/8 | 1 | 22.0 | 48.0 | 142.0 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 136,46 € |  | |
| 125328RIE | G 3/4 | 2 | 26.0 | 70.0 | 193.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | 196,53 € | | |
| 125327RIE | G 1/2 | 2 | 26.0 | 70.0 | 193.0 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | 196,53 € | | |
| 125329RIE | G 1 | 2 | 26.0 | 124.0 | 193.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | 253,86 € | | |
| 125325RIE | G 1/4 | 1 | 22.0 | 48.0 | 142.0 | 800 | Čas dobave: Predvidoma 3 - 5 dni | 136,46 € | |
Opis
Active charcoal filter »variobloc« with PC container and protective cage, 0.003 mg/m³, Size 1, G 1/4, Input pressure max. 16 bar
Activated carbon filters are used to absorb oil vapour from the compressed air. The incoming compressed air should be dry and free of impurities (upstream connection of a micro-filter is recommended).
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Max. temperatura medija [°C] | 50 |
| Max. sobna temperatura [°C] | 50 |
| Pretok [l/min] | 800 |
| Posoda | Polycarbonate container with protective cage |
| A [mm] | 48.0 |
| B [mm] | 142.0 |
| C [mm] | 22.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 7 bar and pressure drop Δp = 0,2 bar |
| Kakovost zraka po ISO 8573.1 | Class 1 dirt, class 1 oil |
| Vsebnost olja v ostanku [mg/m³] | 0.003 |
