Fini filter »Bavaria«, za pitno vodo, brez DVGW, 90 µm, R 1 1/2 slika
Fini filter »Bavaria«, za pitno vodo, brez DVGW, 90 µm, R 1 1/2 slika

* slike so simbolične

Fini filter »Bavaria«, za pitno vodo, brez DVGW, 90 µm, R 1 1/2

SKU: 101417RIE
EAN: 4047322011945

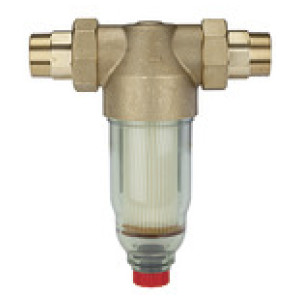

Fine filter »Bavaria« for potable water, without DVGW, 90 µm, R 1 1/2, Input pressure max. 16 bar, Operating temp. max. 30 °C

For filtering drinking and domestic water in addition to well, process and cooling water for once-through cooling systems. These filters protect the water pipes and all water-carrying parts of the system on the downstream side against malfunctions and corrosion damage.

Čas dobave 3 - 5 dni
617,02 €
ali od 16,43 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 16,43 € x 48 mesecev
  • 20,99 € x 36 mesecev
  • 30,16 € x 24 mesecev
  • 57,73 € x 12 mesecev
  • 112,94 € x 6 mesecev
  • 223,37 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj Pretok KVS vrednost [m³/h] DN B [mm] Zaloga Cena Nakup Natisni
101417RIE R 1 1/2 9 40 254.0
Čas dobave 3 - 5 dni
617,02 € Natisni
101418RIE R 2 12 50 274.0
Čas dobave 3 - 5 dni
677,16 € Natisni

Opis

Fine filter »Bavaria« for potable water, without DVGW, 90 µm, R 1 1/2, Input pressure max. 16 bar, Operating temp. max. 30 °C

For filtering drinking and domestic water in addition to well, process and cooling water for once-through cooling systems. These filters protect the water pipes and all water-carrying parts of the system on the downstream side against malfunctions and corrosion damage.

Tehnični podatki in specifikacije

Navoj R 1 1/2
Max. vhodni tlak [bar] 16
Max. delovna temperatura [°C] 30
Ohišje Brass
Rang filtra [µm] 90
Cedilna košarica Special impact-resistant plastic
Pretok KVS vrednost [m³/h] 9
DN 40

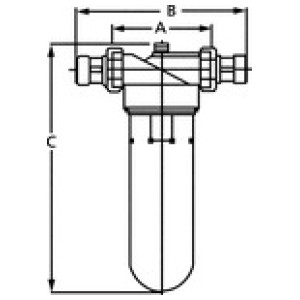

A [mm] 140.0
B [mm] 254.0
C [mm] 290.0
Serija Bavaria
