* slike so simbolične

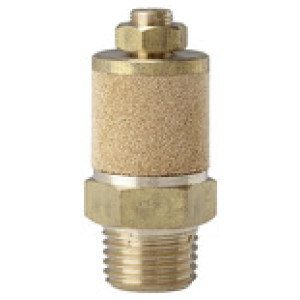

Glušnik, Sintrani bron/medenina, Izpušni, nastavljiv, R 1, AF 36
SKU: 113319RIE
EAN: 4047322368827
Silencer, Sintered bronze/brass, Exhaust, adjustable, R 1, AF 36, Operating pressure max. 10 bar, Operating temp. -10 °C to 250 °C
The volume of exhaust air can be set by means of an adjusting screw with a lock nut.

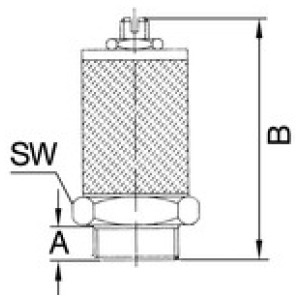

Šifra | Navoj | A [mm] | a/f [mm] | B min. [mm] | B max. [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
113316RIE | R 3/8 | 10.5 | 22 | 47.5 | 60.5 | Čas dobave: Predvidoma 3 - 5 dni | 25,11 € | ||
113318RIE | R 3/4 | 12.0 | 30 | 75.4 | 90.0 | Čas dobave: Predvidoma 3 - 5 dni | 26,88 € | ||
113313RIE | M5 | 4.0 | 8 | 21.0 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,47 € | ||
113317RIE | R 1/2 | 12.0 | 22 | 49.0 | 62.0 | Čas dobave: Predvidoma 3 - 5 dni | 25,11 € | ||
113314RIE | R 1/8 | 8.0 | 16 | 38.0 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,47 € | ||
113315RIE | R 1/4 | 9.5 | 16 | 39.5 | 49.5 | Čas dobave: Predvidoma 3 - 5 dni | 12,61 € | ||
113319RIE | R 1 | 14.5 | 36 | 75.9 | 90.5 | Čas dobave: Predvidoma 3 - 5 dni | 28,65 € |
Opis
Silencer, Sintered bronze/brass, Exhaust, adjustable, R 1, AF 36, Operating pressure max. 10 bar, Operating temp. -10 °C to 250 °C
The volume of exhaust air can be set by means of an adjusting screw with a lock nut.
Tehnični podatki in specifikacije
Max. obratovalni tlak [bar] | 10 |
Min. delovna temperatura [°C] | -10 |
Max. delovna temperatura [°C] | 250 |
Navoj | R 1 |
a/f [mm] | 36 |
A [mm] | 14.5 |
B min. [mm] | 75.9 |
B max. [mm] | 90.5 |
