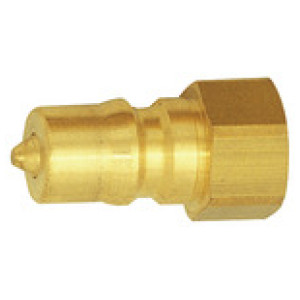

Hidravlična spojka zakl. na obeh str.,Med.G 1/2 N.N.I.D. 11
SKU: 107701RIE
EAN: 4047322061452

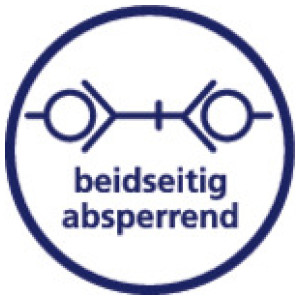

Closing nipple locking on both sides, Bright brass, G 1/2 IT, I.D. 11, Operating pressure max. 150 bar, Temp. -20 °C to 100 °C
Čas dobave: Predvidoma 3 - 5 dni
32,54 €
| Šifra | Povezava | DN | a/f [mm] | Dolžina [mm] | Max. obratovalni tlak [bar] | Volumski pretok (zrak) [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 107699RIE | G 1/4 IT | 6.3 | 19 | 35.3 | 200 | 840 | Čas dobave: Predvidoma 3 - 5 dni | 19,68 € |  | |
| 107702RIE | G 3/4 IT | 13 | 36 | 60.0 | 100 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 52,24 € | | |
| 107698RIE | G 1/8 IT | 4.3 | 14 | 29.5 | 250 | 440 | Čas dobave: Predvidoma 3 - 5 dni | 19,06 € | | |
| 107700RIE | G 3/8 IT | 7.5 | 22 | 39.0 | 200 | 1280 | Čas dobave: Predvidoma 3 - 5 dni | 25,53 € | | |
| 107701RIE | G 1/2 IT | 11 | 27 | 48.0 | 150 | 1950 | Čas dobave: Predvidoma 3 - 5 dni | 32,54 € | |
Opis
Closing nipple locking on both sides, Bright brass, G 1/2 IT, I.D. 11, Operating pressure max. 150 bar, Temp. -20 °C to 100 °C
Tehnični podatki in specifikacije
| Povezava | G 1/2 IT |
| Max. obratovalni tlak [bar] | 150 |
| a/f [mm] | 27 |
| DN | 11 |
| Delovni tlak | Referred to medium temp. of 50 °C, static working pressure |
| Ohišje | Brass with a bare metal surface |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Rokav | Brass with a bare metal surface |
| Ventil | Brass with a bare metal surface |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Pritrdilni obroč | Stainless steel |
| Dolžina [mm] | 48.0 |
| Volumski pretok (zrak) [l/min] | 1950 |
