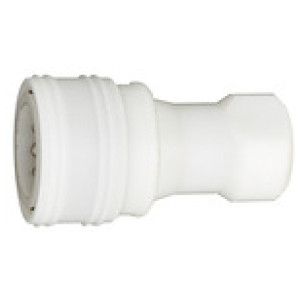

Hidravlična spojka zakl. na obeh str.POMG 1/2 N.N.I.D. 11
SKU: 107716RIE
EAN: 4047322061407
Hydraulic coupling locking on both sides, POM, G 1/2 IT, I.D. 11, Operating pressure max. 10 bar, Temp. -20 °C to 90 °C
Hydraulic couplings, both sides sealing, for liquid media acc. to ISO 7241, B Series.
Areas of application: manufacturing industry, chemical / pharmaceutical industry, food technology.
Obrestno financiranje
- 10,11 € x 12 mesecev
- 19,77 € x 6 mesecev
- 39,10 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Povezava | Max. obratovalni tlak [bar] | DN | a/f [mm] | Dolžina [mm] | Volumski pretok (zrak) [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 107716RIE | G 1/2 IT | 10 | 11 | 27 | 76.0 | 1950 | Čas dobave 3 - 5 dni | 107,59 € |  | |
| 107713RIE | G 1/8 IT | 15 | 4.3 | 14 | 48.5 | 440 | Čas dobave 3 - 5 dni | 58,44 € | | |
| 107715RIE | G 3/8 IT | 15 | 7.5 | 22 | 64.2 | 1280 | Čas dobave 3 - 5 dni | 80,95 € | | |
| 107714RIE | G 1/4 IT | 15 | 6 | 19 | 57.6 | 840 | Čas dobave 3 - 5 dni | 58,08 € | | |
| 107717RIE | G 3/4 IT | 10 | 13 | 34 | 96.0 | 4500 | Čas dobave 3 - 5 dni | 116,94 € | |
Opis
Hydraulic coupling locking on both sides, POM, G 1/2 IT, I.D. 11, Operating pressure max. 10 bar, Temp. -20 °C to 90 °C
Hydraulic couplings, both sides sealing, for liquid media acc. to ISO 7241, B Series.
Areas of application: manufacturing industry, chemical / pharmaceutical industry, food technology.
Tehnični podatki in specifikacije
| Povezava | G 1/2 IT |
| Max. obratovalni tlak [bar] | 10 |
| a/f [mm] | 27 |
| DN | 11 |
| Delovni tlak | Referred to medium temp. of 50 °C, static working pressure |
| Ohišje | POM (Delrin), white |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 90 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 90 |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Rokav | POM (Delrin), white |
| Ventil | Stainless steel 1.4305 |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Pritrdilni obroč | Stainless steel |
| Dolžina [mm] | 76.0 |
| Volumski pretok (zrak) [l/min] | 1950 |
