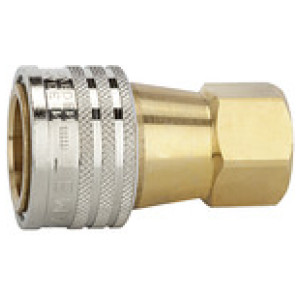

Hidravlična spojkaSerija AI.D. 13,Med.G 1/2 N.N.
SKU: 107723RIE
EAN: 4047322056656
Hydraulic coupling, Series A, I.D. 13, Brass, G 1/2 IT, Operating pressure max. 250 bar, Operating temp. -30 °C to 100 °C
Acc. to ISO 7241-1, A Series.
This coupling series combines an extremely small pressure drop with maximum hydraulic power transmission.
Interchangeable with all couplings and plugs manufactured according to the above standard.
The patented pressure eliminator permits disconnection even if back pressure has built up (up to 200 bar).
The pressure eliminator can be used in all applications where there is a risk of pressure build-up after the line has been separated. It allows effortless connection under pressure.
The mating part must be pressureless in order for the eliminator to function optimally.
Areas of application: Agricultural machines, construction machines, municipal engineering, transportation engineering, industrial plant.
Obrestno financiranje
- 10,44 € x 6 mesecev
- 20,64 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 107723RIE | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € |  |
Opis
Hydraulic coupling, Series A, I.D. 13, Brass, G 1/2 IT, Operating pressure max. 250 bar, Operating temp. -30 °C to 100 °C
Acc. to ISO 7241-1, A Series.
This coupling series combines an extremely small pressure drop with maximum hydraulic power transmission.
Interchangeable with all couplings and plugs manufactured according to the above standard.
The patented pressure eliminator permits disconnection even if back pressure has built up (up to 200 bar).
The pressure eliminator can be used in all applications where there is a risk of pressure build-up after the line has been separated. It allows effortless connection under pressure.
The mating part must be pressureless in order for the eliminator to function optimally.
Areas of application: Agricultural machines, construction machines, municipal engineering, transportation engineering, industrial plant.
Tehnični podatki in specifikacije
| Povezava | G 1/2 IT |
| Max. obratovalni tlak [bar] | 250 |
| Min. delovna temperatura [°C] | -30 |
| Max. delovna temperatura [°C] | 100 |
| a/f [mm] | 27 |
| Ohišje | Brass |
| Tesnilo | NBR |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Ventil | Hard drawn brass |
| Sprostitveni rokav | Nickel-plated brass |
| Dolžina [mm] | 63.0 |
| Volumski pretok (olje) [l/min] | 30 |
