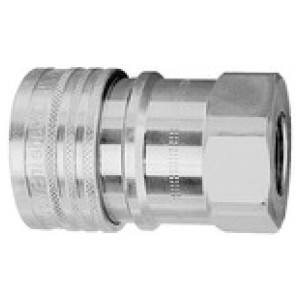

Hidravlična spojkaSerija B,poniklj. Med.G 1/4 N.N. slika
Hidravlična spojkaSerija B,poniklj. Med.G 1/4 N.N. slika

* slike so simbolične

Hidravlična spojkaSerija B,poniklj. Med.G 1/4 N.N.

SKU: 107728RIE
EAN: 4047322056663

Hydraulic coupling, Series B, nickel-plated brass, G 1/4 IT, I.D. 6.3, Operating pressure max. 400 bar

Acc. to ISO 7241-1, B Series.

This coupling series combines an extremely small pressure drop with maximum hydraulic power transmission.

Interchangeable with all couplings and plugs manufactured according to the above standard.

The patented pressure eliminator permits disconnection even if back pressure has built up (up to 200 bar).

The pressure eliminator can be used in all applications where there is a risk of pressure build-up after the line has been separated. It allows effortless connection under pressure.

The mating part must be pressureless in order for the eliminator to function optimally.

Areas of application: chemical industry, food technology, automotive, offshore.

Čas dobave 3 - 5 dni
40,17 €
Primerjaj z ostalimi
Šifra Ohišje Povezava Sprostitveni rokav DN a/f [mm] Dolžina [mm] Volumski pretok (olje) [l/min] Max. obratovalni tlak [bar] Zaloga Cena Nakup Natisni
107732RIE Steel G 1 IT Steel 20 50 94.0 100 300
Čas dobave 3 - 5 dni
157,28 € Natisni
107730RIE Nickel-plated brass G 1/2 IT Steel 12.5 33 66.0 40 300
Čas dobave 3 - 5 dni
63,64 € Natisni
107728RIE Nickel-plated brass G 1/4 IT Nickel-plated brass 6.3 24 57.0 8 400
Čas dobave 3 - 5 dni
40,17 € Natisni
107729RIE Nickel-plated brass G 3/8 IT Steel 10 30 63.0 24 320
Čas dobave 3 - 5 dni
60,23 € Natisni
107731RIE Steel G 3/4 IT Steel 19 46 81.0 75 300
Čas dobave 3 - 5 dni
104,77 € Natisni

Opis

Hydraulic coupling, Series B, nickel-plated brass, G 1/4 IT, I.D. 6.3, Operating pressure max. 400 bar

Acc. to ISO 7241-1, B Series.

This coupling series combines an extremely small pressure drop with maximum hydraulic power transmission.

Interchangeable with all couplings and plugs manufactured according to the above standard.

The patented pressure eliminator permits disconnection even if back pressure has built up (up to 200 bar).

The pressure eliminator can be used in all applications where there is a risk of pressure build-up after the line has been separated. It allows effortless connection under pressure.

The mating part must be pressureless in order for the eliminator to function optimally.

Areas of application: chemical industry, food technology, automotive, offshore.

Tehnični podatki in specifikacije

Povezava G 1/4 IT
Max. obratovalni tlak [bar] 400
Min. delovna temperatura [°C] -30
Max. delovna temperatura [°C] 100
a/f [mm] 24
DN 6.3
Ohišje Nickel-plated brass
Tesnilo NBR
Krogla Stainless steel
Vzmet Stainless steel
Ventil Brass
Sprostitveni rokav Nickel-plated brass
Potisni čep Steel
Dolžina [mm] 57.0
Volumski pretok (olje) [l/min] 8
