* slike so simbolične

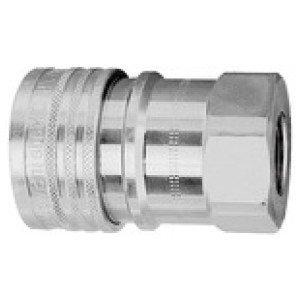

Hidravlična spojkaSerija B,poniklj. Med.G 3/8 N.N.
SKU: 107729RIE
EAN: 4047322056687
Hydraulic coupling, Series B, nickel-plated brass, G 3/8 IT, I.D. 10, Operating pressure max. 320 bar
Acc. to ISO 7241-1, B Series.
This coupling series combines an extremely small pressure drop with maximum hydraulic power transmission.
Interchangeable with all couplings and plugs manufactured according to the above standard.
The patented pressure eliminator permits disconnection even if back pressure has built up (up to 200 bar).
The pressure eliminator can be used in all applications where there is a risk of pressure build-up after the line has been separated. It allows effortless connection under pressure.
The mating part must be pressureless in order for the eliminator to function optimally.
Areas of application: chemical industry, food technology, automotive, offshore.
Povpraševanje
Ohišje: Nickel-plated brass
Potisni čep: Steel
Povezava: G 3/8 IT
Sprostitveni rokav: Steel
Ventil: Brass
Vzmet: Stainless steel
| Šifra | Ohišje | Povezava | Sprostitveni rokav | DN | a/f [mm] | Dolžina [mm] | Volumski pretok (olje) [l/min] | Max. obratovalni tlak [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 107732RIE | Steel | G 1 IT | Steel | 20 | 50 | 94.0 | 100 | 300 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 107730RIE | Nickel-plated brass | G 1/2 IT | Steel | 12.5 | 33 | 66.0 | 40 | 300 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107728RIE | Nickel-plated brass | G 1/4 IT | Nickel-plated brass | 6.3 | 24 | 57.0 | 8 | 400 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107729RIE | Nickel-plated brass | G 3/8 IT | Steel | 10 | 30 | 63.0 | 24 | 320 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107731RIE | Steel | G 3/4 IT | Steel | 19 | 46 | 81.0 | 75 | 300 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Hydraulic coupling, Series B, nickel-plated brass, G 3/8 IT, I.D. 10, Operating pressure max. 320 bar
Acc. to ISO 7241-1, B Series.
This coupling series combines an extremely small pressure drop with maximum hydraulic power transmission.
Interchangeable with all couplings and plugs manufactured according to the above standard.
The patented pressure eliminator permits disconnection even if back pressure has built up (up to 200 bar).
The pressure eliminator can be used in all applications where there is a risk of pressure build-up after the line has been separated. It allows effortless connection under pressure.
The mating part must be pressureless in order for the eliminator to function optimally.
Areas of application: chemical industry, food technology, automotive, offshore.
Tehnični podatki in specifikacije
| Povezava | G 3/8 IT |
| Max. obratovalni tlak [bar] | 320 |
| Min. delovna temperatura [°C] | -30 |
| Max. delovna temperatura [°C] | 100 |
| a/f [mm] | 30 |
| DN | 10 |
| Ohišje | Nickel-plated brass |
| Tesnilo | NBR |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Ventil | Brass |
| Sprostitveni rokav | Steel |
| Potisni čep | Steel |
| Dolžina [mm] | 63.0 |
| Volumski pretok (olje) [l/min] | 24 |
