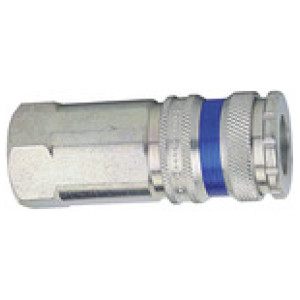

Hitre spojke I.D. 10, Težka obilka, G 1/2 notranji navoj
SKU: 107468RIE
EAN: 4047322273633
Quick-connect coupling I.D. 10, galvanised steel / brass, Robust design, G 1/2 IT, Operating pressure max. 16 bar
One-hand quick disconnect couplings, one side sealing, that combine optimal flow rates (approx. 4 times as high as the popular standard coupling DN 7.2) with minimal coupling forces.
Suitable for all applications with an above-average air requirement and characterised by extreme conditions!
Povpraševanje
Merjenje pretoka: at 6 bar and Δp = 0.5 bar
Povezava: G 1/2 IT
Pretok: 3900 l/min (air)
| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107467RIE | G 3/8 IT | 24 | 62.8 | Čas dobave 3 - 5 dni | 52,79 € |  | |
| 107468RIE | G 1/2 IT | 25 | 67.8 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
Opis
Quick-connect coupling I.D. 10, galvanised steel / brass, Robust design, G 1/2 IT, Operating pressure max. 16 bar
One-hand quick disconnect couplings, one side sealing, that combine optimal flow rates (approx. 4 times as high as the popular standard coupling DN 7.2) with minimal coupling forces.
Suitable for all applications with an above-average air requirement and characterised by extreme conditions!
Tehnični podatki in specifikacije
| DN | 10 |
| Max. obratovalni tlak [bar] | 16 |
| Povezava | G 1/2 IT |
| a/f [mm] | 25 |
| Dolžina [mm] | 67.8 |
| Tesnilo | NBR |
| Pretok | 3900 l/min (air) |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 100 |
| Material | Nickel-plated steel, nickel-plated brass |
