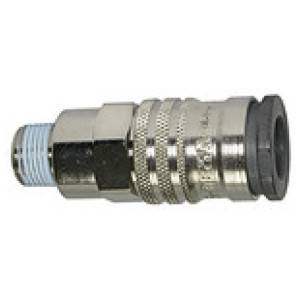

Hitre spojke I.D. 10Visok przun. navojok,R 3/8 Z.N. slika
Hitre spojke I.D. 10Visok przun. navojok,R 3/8 Z.N. slika

* slike so simbolične

Hitre spojke I.D. 10Visok przun. navojok,R 3/8 Z.N.

SKU: 107441RIE
EAN: 4047322207379

Quick-connect coupling I.D. 10, High flow rate, Steel / nickel-plated brass, R 3/8 ET, Pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

One-hand quick disconnect couplings, one side sealing, that combine high flow rates (approx. 3.5 times as high as the popular DN 7.2 standard coupling) with minimal coupling forces.

Suitable for all applications with an above-average air requirement!

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, Machine and plant engineering, Measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, food technology, aerospace.

"
Čas dobave: Predvidoma 3 - 5 dni
41,93 €
Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
107442RIE R 1/2 ET 24 74.7
Čas dobave: Predvidoma 3 - 5 dni
41,93 € Natisni
107443RIE R 3/4 ET 27 63.7
Čas dobave: Predvidoma 3 - 5 dni
41,93 € Natisni
107441RIE R 3/8 ET 24 69.7
Čas dobave: Predvidoma 3 - 5 dni
41,93 € Natisni

Opis

Quick-connect coupling I.D. 10, High flow rate, Steel / nickel-plated brass, R 3/8 ET, Pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

One-hand quick disconnect couplings, one side sealing, that combine high flow rates (approx. 3.5 times as high as the popular DN 7.2 standard coupling) with minimal coupling forces.

Suitable for all applications with an above-average air requirement!

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, Machine and plant engineering, Measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, food technology, aerospace.

"

Tehnični podatki in specifikacije

DN 10
Max. obratovalni tlak [bar] 35
Povezava R 3/8 ET
a/f [mm] 24
Dolžina [mm] 69.7
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Tesnilo NBR
Pretok 3600 l/min (air)
Sedež ventila Brass
Krogla Stainless steel
Vzmet Stainless steel
Telo ventila Steel, QPQ treated
Pritrdilni obroč Stainless steel
Navojni kos Nickel-plated brass
Sprostitveni rokav Nickel-plated brass
Ventil Brass
Merjenje pretoka at 6 bar and Δp = 0.5 bar
