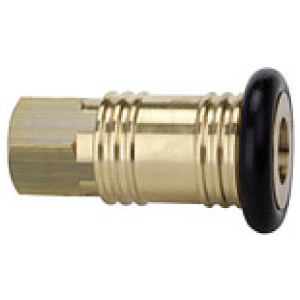

Hitre spojke I.D. 12,Garažna spojka, G 3/4 notranji navoj slika
Hitre spojke I.D. 12,Garažna spojka, G 3/4 notranji navoj slika

* slike so simbolične

Hitre spojke I.D. 12,Garažna spojka, G 3/4 notranji navoj

SKU: 107480RIE
EAN: 4047322060400

Quick-connect coupling I.D. 12, Garage coupling, Bright brass, G 3/4 IT, Pressure max. 16 bar, Medium/ambient temp. -10°C to 50°C

"

One-hand quick disconnect couplings, one side sealing, for high flow rates.

With rubber ring to protect against wear.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Machine and plant engineering, manufacturing industry, workshops.

"
Čas dobave: Predvidoma 3 - 5 dni
49,25 €
Primerjaj z ostalimi
Šifra Povezava Zaloga Cena Nakup Natisni
107480RIE G 3/4 IT
Čas dobave: Predvidoma 3 - 5 dni
49,25 € Natisni
107479RIE G 1/2 IT
Čas dobave: Predvidoma 3 - 5 dni
49,25 € Natisni

Opis

Quick-connect coupling I.D. 12, Garage coupling, Bright brass, G 3/4 IT, Pressure max. 16 bar, Medium/ambient temp. -10°C to 50°C

"

One-hand quick disconnect couplings, one side sealing, for high flow rates.

With rubber ring to protect against wear.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Machine and plant engineering, manufacturing industry, workshops.

"

Tehnični podatki in specifikacije

DN 12
Max. obratovalni tlak [bar] 16
Povezava G 3/4 IT
a/f [mm] 30
Dolžina [mm] 82.0
Min. temperatura medija [°C] -10
Max. temperatura medija [°C] 50
Min. sobna temperatura [°C] -10
Max. sobna temperatura [°C] 50
Tesnilo NBR
Pretok 4150 l/min (air)
Material Brass with a bare metal surface
Vzmet Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
