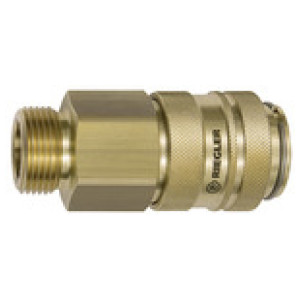

Hitre spojke I.D. 19Z.N. Med.G 1 1/4 Z.N. slika
Hitre spojke I.D. 19Z.N. Med.G 1 1/4 Z.N. slika

* slike so simbolične

Hitre spojke I.D. 19Z.N. Med.G 1 1/4 Z.N.

SKU: 141563RIE
EAN: 4047322568357

Quick-connect coupling I.D. 19, Bright brass, G 1 1/4 ET, Operating pressure 0 - 35 bar, Med. / ambient temp. -20 °C to 100 °C

"

Single-sided blocking and quick connect coupling with extremely high flow performance.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Machine and plant engineering, manufacturing industry, workshops.

"
Čas dobave 3 - 5 dni
300,30 €
ali od 14,25 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 14,25 € x 24 mesecev
  • 27,34 € x 12 mesecev
  • 53,55 € x 6 mesecev
  • 105,98 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
141562 G 1 ET 41 98.0
Čas dobave 3 - 5 dni
250,25 € Natisni
141561 G 3/4 ET 41 95.0
Čas dobave 3 - 5 dni
250,25 € Natisni
141563 G 1 1/4 ET 42 98.0
Čas dobave 3 - 5 dni
300,30 € Natisni

Opis

Quick-connect coupling I.D. 19, Bright brass, G 1 1/4 ET, Operating pressure 0 - 35 bar, Med. / ambient temp. -20 °C to 100 °C

"

Single-sided blocking and quick connect coupling with extremely high flow performance.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Machine and plant engineering, manufacturing industry, workshops.

"

Tehnični podatki in specifikacije

DN 19
Povezava G 1 1/4 ET
a/f [mm] 42
Dolžina [mm] 98.0
Delovni tlak 0 - 35 bar
Ohišje Brass with a bare metal surface
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 8700 l/min (air)
Vzmet Stainless steel
Rokav Brass with a bare metal surface
Navojni kos Brass with a bare metal surface
Ventil Brass with a bare metal surface
Merjenje pretoka at 6 bar and Δp = 0.5 bar
