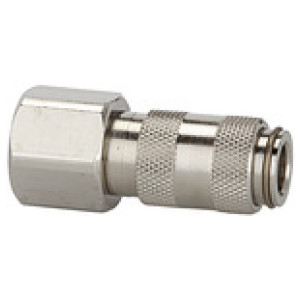

Hitre spojke I.D. 2.7,Nerjavno jeklo 1.4404, G 1/8 notranji navoj slika
Hitre spojke I.D. 2.7,Nerjavno jeklo 1.4404, G 1/8 notranji navoj slika

* slike so simbolične

Hitre spojke I.D. 2.7,Nerjavno jeklo 1.4404, G 1/8 notranji navoj

SKU: 107110RIE
EAN: 4047322403894

Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, G 1/8 IT, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C

"

One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, offshore.

"
Čas dobave: Predvidoma 3 - 5 dni
169,62 €
ali od 15,91 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 15,91 € x 12 mesecev
  • 31,12 € x 6 mesecev
  • 61,55 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
107110RIE G 1/8 IT 12 28.0
Čas dobave: Predvidoma 3 - 5 dni
169,62 € Natisni
107109RIE M5 IT 9 25.0
Čas dobave: Predvidoma 3 - 5 dni
160,66 € Natisni

Opis

Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, G 1/8 IT, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C

"

One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, offshore.

"

Tehnični podatki in specifikacije

DN 2.7
Povezava G 1/8 IT
a/f [mm] 12
Dolžina [mm] 28.0
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Ohišje Stainless steel 1.4404
Tesnilo FKM
Min. temperatura medija [°C] -15
Max. temperatura medija [°C] 200
Min. sobna temperatura [°C] -15
Max. sobna temperatura [°C] 200
Pretok 165 l/min (air)
Krogla Stainless steel 1.4404
Vzmet Stainless steel 1.4404
Telo ventila Stainless steel 1.4404
Rokav Stainless steel 1.4404
Pritrdilni obroč Stainless steel 1.4404
Merjenje pretoka at 6 bar and Δp = 0.5 bar
