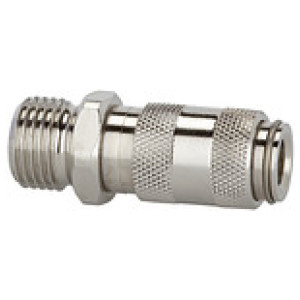

Hitre spojke I.D. 2.7ponikljana medenina, G 1/8 zunanji navoj
SKU: 107088RIE
EAN: 4047322057936
Quick-connect coupling I.D. 2.7, nickel-plated brass, G 1/8 ET, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.
"Povpraševanje
Krogla: Stainless steel
Merjenje pretoka: at 6 bar and Δp = 0.5 bar
Ohišje: Nickel-plated brass
Povezava: G 1/8 ET
Pritrdilni obroč: Stainless steel
Rokav: Nickel-plated brass
Telo ventila: Nickel-plated brass
Vzmet: Stainless steel
Pretok: 165 l/min (air)
| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107088RIE | G 1/8 ET | 11 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 107087RIE | M5 ET | 9 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Quick-connect coupling I.D. 2.7, nickel-plated brass, G 1/8 ET, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.
"Tehnični podatki in specifikacije
| DN | 2.7 |
| Povezava | G 1/8 ET |
| a/f [mm] | 11 |
| Dolžina [mm] | 28.0 |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Ohišje | Nickel-plated brass |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 165 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Telo ventila | Nickel-plated brass |
| Rokav | Nickel-plated brass |
| Pritrdilni obroč | Stainless steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
