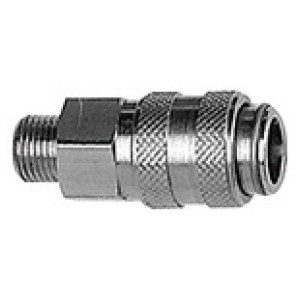

Hitre spojke I.D. 5,Nerjavno jeklo 1.4305, G 1/4 zunanji navoj slika
Hitre spojke I.D. 5,Nerjavno jeklo 1.4305, G 1/4 zunanji navoj slika

* slike so simbolične

Hitre spojke I.D. 5,Nerjavno jeklo 1.4305, G 1/4 zunanji navoj

SKU: 107193RIE
EAN: 4047322059619

Quick-connect coupling I.D. 5, Stainless steel 1.4305, G 1/4 ET, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C

"

One-hand quick disconnect couplings, one side sealing, made of stainless steel 1.4305, compact with a large bore.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, offshore.

"
Čas dobave 3 - 5 dni
98,53 €
ali od 18,12 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 18,12 € x 6 mesecev
  • 35,84 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
107193RIE G 1/4 ET 17 38.0
Čas dobave 3 - 5 dni
98,53 € Natisni
107194RIE G 3/8 ET 19 38.0
Čas dobave 3 - 5 dni
106,60 € Natisni
107192RIE G 1/8 ET 14 36.0
Čas dobave 3 - 5 dni
98,53 € Natisni

Opis

Quick-connect coupling I.D. 5, Stainless steel 1.4305, G 1/4 ET, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C

"

One-hand quick disconnect couplings, one side sealing, made of stainless steel 1.4305, compact with a large bore.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, offshore.

"

Tehnični podatki in specifikacije

DN 5
Povezava G 1/4 ET
a/f [mm] 17
Dolžina [mm] 38.0
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Ohišje Stainless steel 1.4305
Tesnilo FKM
Min. temperatura medija [°C] -15
Max. temperatura medija [°C] 200
Min. sobna temperatura [°C] -15
Max. sobna temperatura [°C] 200
Pretok 560 l/min (air)
Krogla Stainless steel
Vzmet Stainless steel
Telo ventila Stainless steel 1.4305
Rokav Stainless steel 1.4305
Pritrdilni obroč Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
