* slike so simbolične
Hitre spojke I.D. 5 zakl. na obeh str.G 1/4 N.N.
SKU: 107495RIE
EAN: 4047322058964

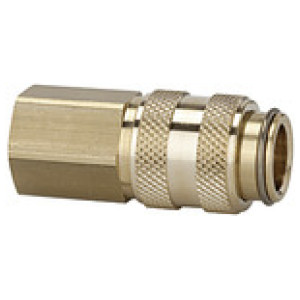

Quick-connect coupling I.D. 5, locking on both sides, Bright brass, G 1/4 IT, Operating pressure 0-35 bar, Temp. -20 °C to 100 °C
Both the coupling and the self-sealing plug are fitted with a valve.
Connection: Both valves open and the medium is allowed to pass.
Disconnection: Both valves close and the medium is prevented from escaping.
Areas of application: Pneumatic system, machine and plant engineering, Measurement, monitoring and control systems, Manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.
| Šifra | Povezava | a/f [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 107495RIE | G 1/4 IT | 17 | Čas dobave: Predvidoma 3 - 5 dni | 9,15 € |  | |
| 107494RIE | G 1/8 IT | 14 | Čas dobave: Predvidoma 3 - 5 dni | 9,15 € | |
Opis
Quick-connect coupling I.D. 5, locking on both sides, Bright brass, G 1/4 IT, Operating pressure 0-35 bar, Temp. -20 °C to 100 °C
Both the coupling and the self-sealing plug are fitted with a valve.
Connection: Both valves open and the medium is allowed to pass.
Disconnection: Both valves close and the medium is prevented from escaping.
Areas of application: Pneumatic system, machine and plant engineering, Measurement, monitoring and control systems, Manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.
Tehnični podatki in specifikacije
| DN | 5 |
| Povezava | G 1/4 IT |
| a/f [mm] | 17 |
| Dolžina [mm] | 38.0 |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Ohišje | Brass with a bare metal surface |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 310 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Telo ventila | Brass with a bare metal surface |
| Rokav | Brass with a bare metal surface |
| Pritrdilni obroč | Stainless steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
