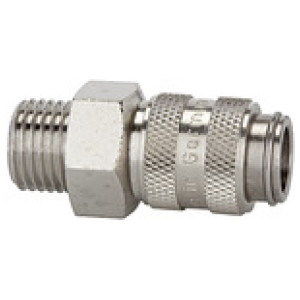

Hitre spojke I.D. 5ponikljana medenina, G 1/4 zunanji navoj slika
Hitre spojke I.D. 5ponikljana medenina, G 1/4 zunanji navoj slika

* slike so simbolične

Hitre spojke I.D. 5ponikljana medenina, G 1/4 zunanji navoj

SKU: 107159RIE
EAN: 4047322058834

Quick-connect coupling I.D. 5, nickel-plated brass, G 1/4 ET, Operating pressure 0-35 bar, Med./ambient temp. -20°C to 100°C

"

One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.

"
Čas dobave: Predvidoma 3 - 5 dni
9,72 €
Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
107160RIE G 3/8 ET 19 38.0
Čas dobave: Predvidoma 3 - 5 dni
9,72 € Natisni
107158RIE G 1/8 ET 14 36.5
Čas dobave: Predvidoma 3 - 5 dni
9,72 € Natisni
107159RIE G 1/4 ET 17 38.0
Čas dobave: Predvidoma 3 - 5 dni
9,72 € Natisni

Opis

Quick-connect coupling I.D. 5, nickel-plated brass, G 1/4 ET, Operating pressure 0-35 bar, Med./ambient temp. -20°C to 100°C

"

One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.

"

Tehnični podatki in specifikacije

DN 5
Povezava G 1/4 ET
a/f [mm] 17
Dolžina [mm] 38.0
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Ohišje Nickel-plated brass
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 560 l/min (air)
Krogla Stainless steel
Vzmet Stainless steel
Telo ventila Nickel-plated brass
Rokav Nickel-plated brass
Pritrdilni obroč Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
