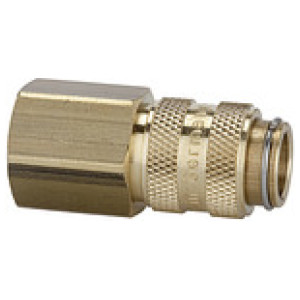

Hitre spojke I.D. 5Z.N. Med.G 3/8 N.N.
SKU: 107130RIE
EAN: 4047322059008
Quick-connect coupling I.D. 5, bright brass, G 3/8 IT, Operating pressure 0 - 35 bar, Med. / ambient temp. -20 °C to 100 °C
"One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.
"| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107128RIE | G 1/8 IT | 14 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,67 € |  | |
| 107129RIE | G 1/4 IT | 17 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,67 € | | |
| 107130RIE | G 3/8 IT | 19 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,67 € | |
Opis
Quick-connect coupling I.D. 5, bright brass, G 3/8 IT, Operating pressure 0 - 35 bar, Med. / ambient temp. -20 °C to 100 °C
"One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.
"Tehnični podatki in specifikacije
| DN | 5 |
| Povezava | G 3/8 IT |
| a/f [mm] | 19 |
| Dolžina [mm] | 40.0 |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Ohišje | Brass with a bare metal surface |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 560 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Telo ventila | Brass with a bare metal surface |
| Rokav | Brass with a bare metal surface |
| Pritrdilni obroč | Stainless steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
