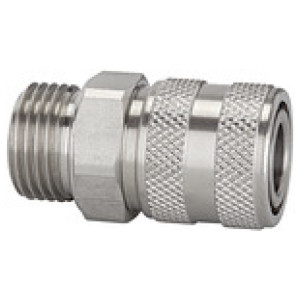

Hitre spojke I.D. 7.2,Nerjavno jeklo 1.4305, G 3/8 zunanji navoj slika
Hitre spojke I.D. 7.2,Nerjavno jeklo 1.4305, G 3/8 zunanji navoj slika

* slike so simbolične

Hitre spojke I.D. 7.2,Nerjavno jeklo 1.4305, G 3/8 zunanji navoj

SKU: 107335RIE
EAN: 4047322058353

Quick-connect coupling I.D. 7.2, Stainless steel 1.4305, G 3/8 ET, Operating pressure max. 35 bar, Temp. -25 °C to 200 °C

Classic standard coupling type, one side sealing, made of stainless steel.

The closed sleeve protects the coupling from dirt.

We recommend the use of stainless steel plugs and stems!

To prevent injuries or a "whiplash" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, chemical / pharmaceutical industry, workshops, automotive, offshore.

Čas dobave 3 - 5 dni
106,46 €
ali od 19,40 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 19,40 € x 6 mesecev
  • 38,38 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
107334RIE G 1/4 ET 22 43.0
Čas dobave 3 - 5 dni
106,46 € Natisni
107336RIE G 1/2 ET 24 46.0
Čas dobave 3 - 5 dni
106,46 € Natisni
107335RIE G 3/8 ET 22 43.0
Čas dobave 3 - 5 dni
106,46 € Natisni

Opis

Quick-connect coupling I.D. 7.2, Stainless steel 1.4305, G 3/8 ET, Operating pressure max. 35 bar, Temp. -25 °C to 200 °C

Classic standard coupling type, one side sealing, made of stainless steel.

The closed sleeve protects the coupling from dirt.

We recommend the use of stainless steel plugs and stems!

To prevent injuries or a "whiplash" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, chemical / pharmaceutical industry, workshops, automotive, offshore.

Tehnični podatki in specifikacije

DN 7.2
Max. obratovalni tlak [bar] 35
Povezava G 3/8 ET
a/f [mm] 22
Ohišje Stainless steel 1.4305
Tesnilo FKM
Min. temperatura medija [°C] -25
Max. temperatura medija [°C] 200
Min. sobna temperatura [°C] -25
Max. sobna temperatura [°C] 200
Pretok 1000 l/min (air)
Vzmet Stainless steel 1.4310
Telo ventila Stainless steel 1.4305
Rokav Stainless steel 1.4305
Pritrdilni obroč Stainless steel 1.4310
Zaporni zatič Stainless steel 1.4401
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Dolžina [mm] 43.0
