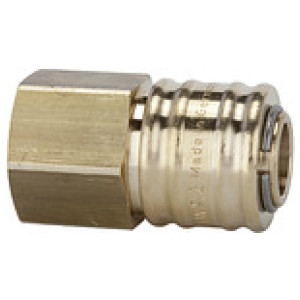

Hitre spojke I.D. 7.2 zakl. na obeh str.G 1/2 N.N.
SKU: 107511RIE
EAN: 4047322059541
Quick-connect coupling I.D. 7.2, locking on both sides, Bright brass, G 1/2 IT, Operating pressure 0-35 bar, Temp. -20°C to 100°C
Couplings, stems and plugs are fitted with a valve.
Connection: Both valves open and the medium is allowed to pass.
Disconnection: Both valves close and the medium is prevented from escaping.
Areas of application: Pneumatic system, machine and plant engineering, Measurement, monitoring and control systems, Manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.
Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
107510RIE | G 3/8 IT | 22 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,69 € | ||
107509RIE | G 1/4 IT | 22 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,69 € | ||
107511RIE | G 1/2 IT | 24 | 42.5 | Čas dobave: Predvidoma 3 - 5 dni | 13,69 € |
Opis
Quick-connect coupling I.D. 7.2, locking on both sides, Bright brass, G 1/2 IT, Operating pressure 0-35 bar, Temp. -20°C to 100°C
Couplings, stems and plugs are fitted with a valve.
Connection: Both valves open and the medium is allowed to pass.
Disconnection: Both valves close and the medium is prevented from escaping.
Areas of application: Pneumatic system, machine and plant engineering, Measurement, monitoring and control systems, Manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.
Tehnični podatki in specifikacije
DN | 7.2 |
Povezava | G 1/2 IT |
a/f [mm] | 24 |
Dolžina [mm] | 42.5 |
Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
Ohišje | Brass with a bare metal surface |
Tesnilo | NBR |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 100 |
Pretok | 700 l/min (air) |
Krogla | Stainless steel |
Vzmet | Stainless steel |
Telo ventila | Brass with a bare metal surface |
Rokav | Brass with a bare metal surface |
Pritrdilni obroč | Stainless steel |
Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
