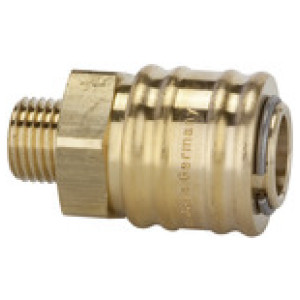

Hitre spojke I.D. 7.2 zakl. na obeh str.G 1/2 Z.N.
SKU: 107508RIE
EAN: 4047322057554
Quick-connect coupling I.D. 7.2, locking on both sides, Bright brass, G 1/2 ET, Operating pressure 0-35 bar, Temp. -20°C to 100°C
Couplings, stems and plugs are fitted with a valve.
Connection: Both valves open and the medium is allowed to pass.
Disconnection: Both valves close and the medium is prevented from escaping.
Areas of application: Pneumatic system, machine and plant engineering, Measurement, monitoring and control systems, Manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.
| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107507RIE | G 3/8 ET | 22 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,69 € |  | |
| 107506RIE | G 1/4 ET | 22 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,69 € | | |
| 107508RIE | G 1/2 ET | 24 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,69 € | |
Opis
Quick-connect coupling I.D. 7.2, locking on both sides, Bright brass, G 1/2 ET, Operating pressure 0-35 bar, Temp. -20°C to 100°C
Couplings, stems and plugs are fitted with a valve.
Connection: Both valves open and the medium is allowed to pass.
Disconnection: Both valves close and the medium is prevented from escaping.
Areas of application: Pneumatic system, machine and plant engineering, Measurement, monitoring and control systems, Manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.
Tehnični podatki in specifikacije
| DN | 7.2 |
| Povezava | G 1/2 ET |
| a/f [mm] | 24 |
| Dolžina [mm] | 41.0 |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Ohišje | Brass with a bare metal surface |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 700 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Telo ventila | Brass with a bare metal surface |
| Rokav | Brass with a bare metal surface |
| Pritrdilni obroč | Stainless steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
