* slike so simbolične

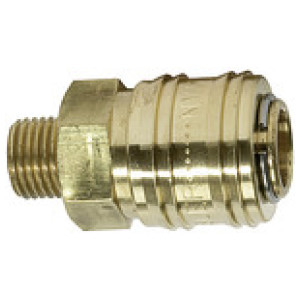

Hitre spojke I.D. 7.2 »connect line«, G 1/4 zunanji navoj
SKU: 115612RIE
EAN: 4047322057325
Quick-connect coupling I.D. 7.2 »connect line«, bright brass, G 1/4 ET, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"Universal, one-hand quick disconnect couplings, one side sealing, at an unbeatably low price.
The closed sleeve protects the coupling from dirt.
In combination with steel plugs, this coupling can also be used for pneumatic tools thanks to its hardened locking pins.
Couplings and plugs with thread sealing coating:
Ready-to assemble polyacrylate thread coating provides an instant, tight seal without curing. The permanently elastic sealant can be adjusted up to 45° without influencing the seal. Safe to use. Easy to assemble and disassemble.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.
"Šifra | Povezava | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|
115616RIE | G 1/2 ET | 40.5 | Na zalogi | 6,04 € | ||
115614RIE | G 3/8 ET | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,04 € | ||
115611RIE | G 1/8 ET | 37.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,04 € | ||
115612RIE | G 1/4 ET | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,04 € |
Opis
Quick-connect coupling I.D. 7.2 »connect line«, bright brass, G 1/4 ET, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"Universal, one-hand quick disconnect couplings, one side sealing, at an unbeatably low price.
The closed sleeve protects the coupling from dirt.
In combination with steel plugs, this coupling can also be used for pneumatic tools thanks to its hardened locking pins.
Couplings and plugs with thread sealing coating:
Ready-to assemble polyacrylate thread coating provides an instant, tight seal without curing. The permanently elastic sealant can be adjusted up to 45° without influencing the seal. Safe to use. Easy to assemble and disassemble.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.
"Tehnični podatki in specifikacije
DN | 7.2 |
Povezava | G 1/4 ET |
a/f [mm] | 21 |
Ohišje | Brass with a bare metal surface |
Tesnilo | NBR |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 100 |
Pretok | 1000 l/min (air) |
Vzmet | Stainless steel |
Telo ventila | Brass with a bare metal surface |
Rokav | Brass with a bare metal surface |
Pritrdilni obroč | Stainless steel |
Zaporni zatič | Stainless steel |
Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
Dolžina [mm] | 39.0 |
