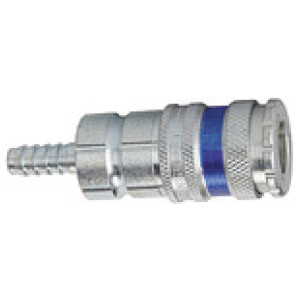

Hitre spojke I.D. 7.6, pocinkano /medenina,Fi cevi I.D. 10
SKU: 107365RIE
EAN: 4047322061025
Quick-connect coupling I.D. 7.6, galvanised steel / brass, Sleeve I.D. 10, Operating pressure max. 16 bar, Temp. -20 °C to 100 °C
High-quality, one-hand quick disconnect couplings made of brass / steel for high flow rates.
Specially designed for all applications susceptible to severe mechanical wear.
Strong, impact and vibration-resistant design for demanding environments.
The stream line type has an integrated hose stem.
Povpraševanje
Ohišje: Steel
Povezava: I.D. 10
Rokav: Hardened and nickel-plated steel
Vzmet: Stainless steel
Pretok: 2100 l/min (air)
| Šifra | Povezava | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 107364RIE | I.D. 9 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 107366RIE | I.D. 13 | 68.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 107363RIE | I.D. 8 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 107362RIE | I.D. 6 | 67.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 107365RIE | I.D. 10 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Quick-connect coupling I.D. 7.6, galvanised steel / brass, Sleeve I.D. 10, Operating pressure max. 16 bar, Temp. -20 °C to 100 °C
High-quality, one-hand quick disconnect couplings made of brass / steel for high flow rates.
Specially designed for all applications susceptible to severe mechanical wear.
Strong, impact and vibration-resistant design for demanding environments.
The stream line type has an integrated hose stem.
Tehnični podatki in specifikacije
| DN | 7.6 |
| Max. obratovalni tlak [bar] | 16 |
| Povezava | I.D. 10 |
| Ohišje | Steel |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 2100 l/min (air) |
| Vzmet | Stainless steel |
| Rokav | Hardened and nickel-plated steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Dolžina [mm] | 70.0 |
