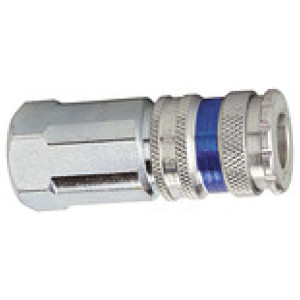

Hitre spojke I.D. 7.6, pocinkano /medenina, G 3/8 notranji navoj slika
Hitre spojke I.D. 7.6, pocinkano /medenina, G 3/8 notranji navoj slika

* slike so simbolične

Hitre spojke I.D. 7.6, pocinkano /medenina, G 3/8 notranji navoj

SKU: 107360RIE
EAN: 4047322060981

Quick-connect coupling I.D. 7.6, galvanised steel / brass, G 3/8 IT, Operating pressure max. 16 bar, Temp. -20 °C to 100 °C

High-quality, one-hand quick disconnect couplings made of brass / steel for high flow rates.

Specially designed for all applications susceptible to severe mechanical wear.

Strong, impact and vibration-resistant design for demanding environments.

The stream line type has an integrated hose stem.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
107359RIE G 1/4 IT 20 57.0
Čas dobave: Predvidoma 3 - 5 dni
? Povpraševanje Natisni
107361RIE G 1/2 IT 25 60.0
Čas dobave: Predvidoma 3 - 5 dni
? Povpraševanje Natisni
107360RIE G 3/8 IT 22 60.0
Čas dobave: Predvidoma 3 - 5 dni
? Povpraševanje Natisni

Opis

Quick-connect coupling I.D. 7.6, galvanised steel / brass, G 3/8 IT, Operating pressure max. 16 bar, Temp. -20 °C to 100 °C

High-quality, one-hand quick disconnect couplings made of brass / steel for high flow rates.

Specially designed for all applications susceptible to severe mechanical wear.

Strong, impact and vibration-resistant design for demanding environments.

The stream line type has an integrated hose stem.

Tehnični podatki in specifikacije

DN 7.6
Max. obratovalni tlak [bar] 16
Povezava G 3/8 IT
a/f [mm] 22
Ohišje Steel
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 2100 l/min (air)
Vzmet Stainless steel
Rokav Hardened and nickel-plated steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Dolžina [mm] 60.0
